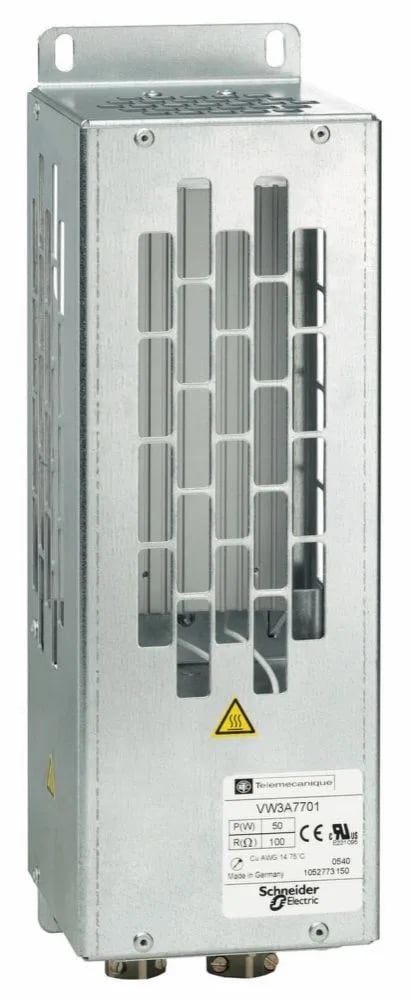

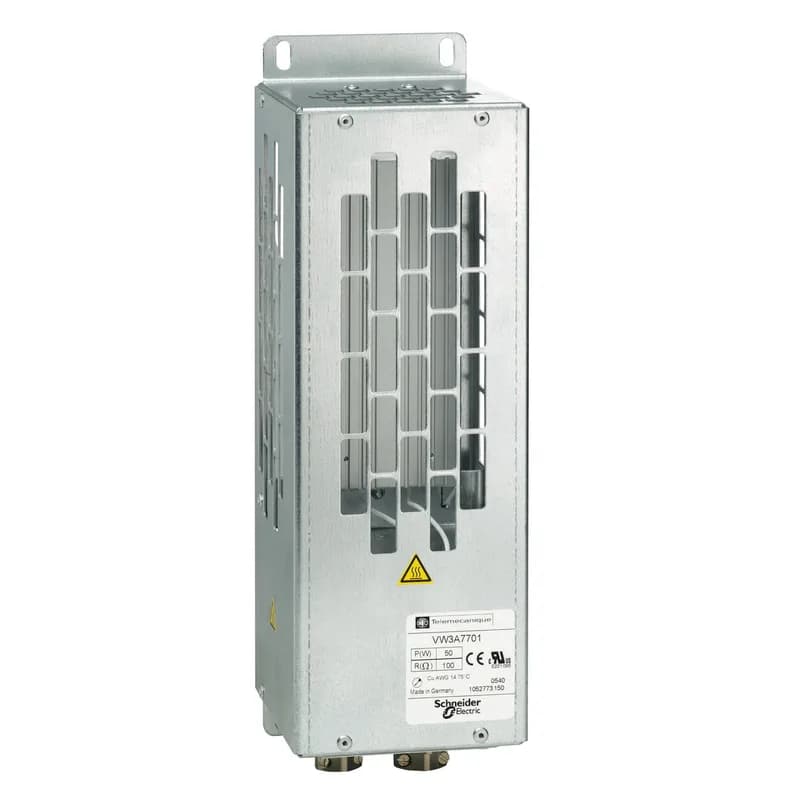

Schneider Electric VW3A7701
MPNVW3A7701
Obsolete
braking resistor, Altivar, IP20, 100Ohm, 50W|braking resistor, Altivar, IP20, 100Ohm, 50W
$82.30Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Range of product | Altivar |
| [Ue] rated operational voltage | 24 V DC 0.1 A 250 V AC 1 A |
| Average power available | 50 W 122 °F (50 °C) 58 W 104 °F (40 °C) |
| IP degree of protection | IP20 |
| Electrical connection | terminal terminal <= 4 mm² / AWG 28 drive |
| Depth | 3.7 in (95 mm) |
| Width | 3.7 in (95 mm) |
| Height | 11.5 in (293 mm) |
| Category | US1PC5118297 |
| Ohmic value | 100 Ohm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
| Temperature controlled switch contact resistance | 60 µOhm |
MPN
VW3A7701
