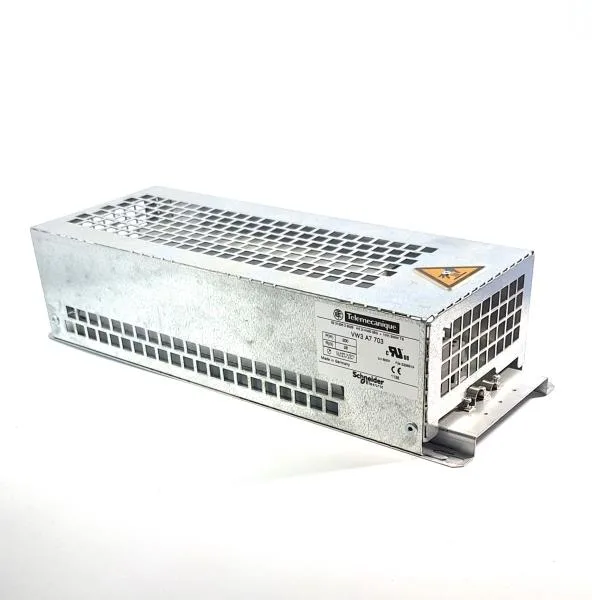

Schneider VW3A7703 Resistor Element
MPNVW3A7703
Active
VW3A7703 - 28 OHM by SCHNEIDER ELECTRIC
$173.99Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive or temperature control switch at 120 °C |
| Range of product | Altivar |
| [Ue] rated operational voltage | 24 V DC at 0.1 A 250 V AC at 1 A |
| Average power available | 200 W at 50 °C 231 W at 40 °C |
| IP degree of protection | IP20 |
| Electrical connection | terminal, connection capacity: terminal, connection capacity: <= 4 mm² / AWG 28 for drive |
| Depth | 120 mm |
| Width | 140 mm |
| Height | 393 mm |
| Ohmic value | 28 Ohm |
| Ambient air temperature for storage | -25...70 °C |
| Ambient air temperature for operation | 0...50 °C |
| Temperature controlled switch contact resistance | 60 µOhm |
MPN
VW3A7703
