Overview

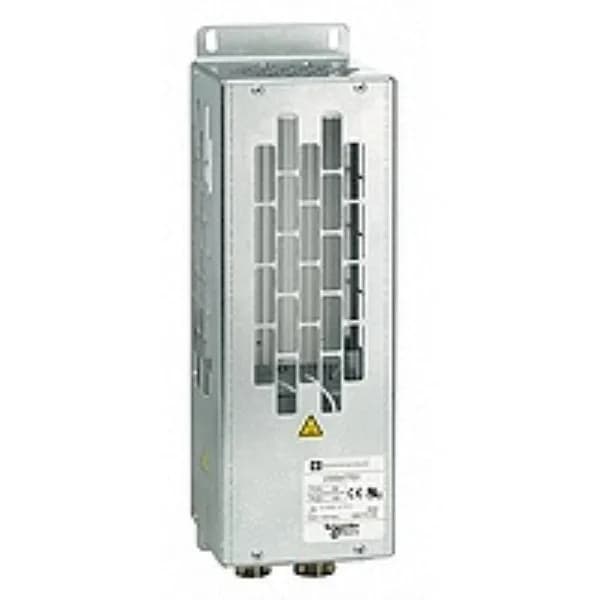

The VW3A7705 is a Schneider Altivar braking resistor rated at 10 Ohm and 1000 W, housed in an IP20 enclosure with M6 bar wire drive terminals accepting up to 2.5 mm² / AWG 14. Thermal protection is handled by the drive or an external 120 °C temperature control switch. It is compatible with Altivar 312, Altivar 61, Lexium 32, and Lexium 52 drives, and is currently in active production.
Sibling comparison
Compared to the VW3A7704 (15 Ohm, 1000 W), the VW3A7705 offers a lower 10 Ohm resistance at the same 1000 W power rating. Choose the VW3A7705 when the drive requires a lower resistance value for higher braking torque; the VW3A7704 suits applications needing a higher resistance to limit peak current. Compared to the VW3A7707 (5 Ohm, 1300 W), the VW3A7705 provides a higher resistance and lower power rating. The VW3A7707 is for drives demanding a very low resistance and higher power dissipation.
