Schneider Electric VW3A7732
MPNVW3A7732
Active

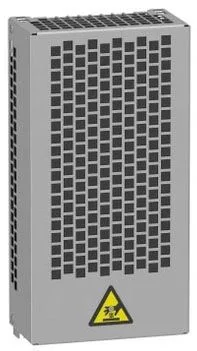

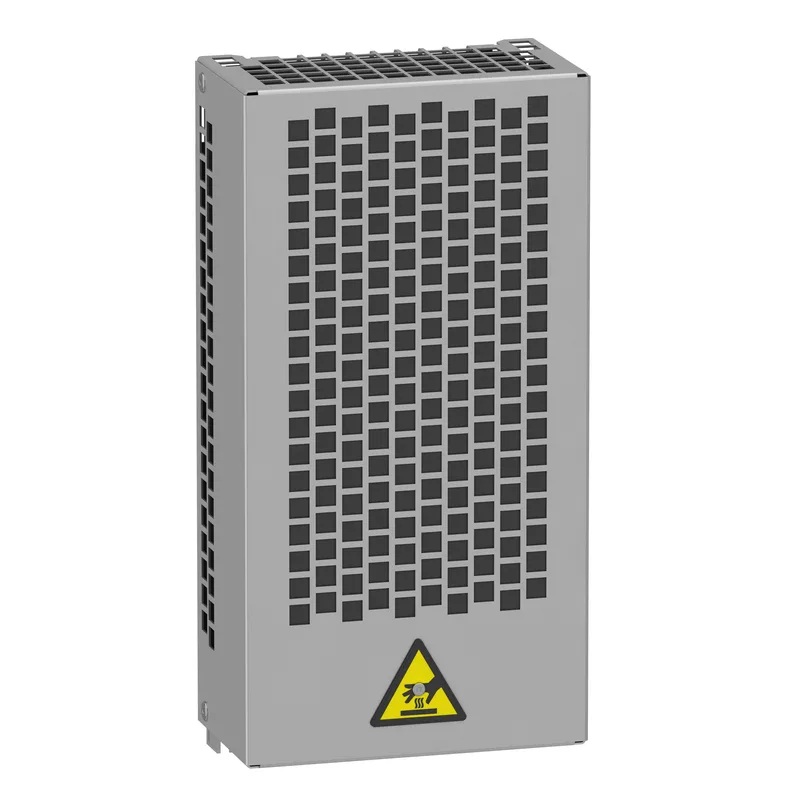

Square D VW3A7732 Braking Resistor|Square D VW3A7732 Braking Resistor
$91.44 – $171.59Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive |
| Range of product | Altivar |
| Product or component type | Braking resistor |
| Average power available | 0.3 kW 122 °F (50 °C) |
| Duty cycle | Light cycle (heavy duty) Light cycle (normal duty) Medium cycle (normal duty) Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle |
| IP degree of protection | IP20 |
| Electrical connection | terminal <= 10 mm² / AWG 8 drive |
| Depth | 3.9 in (100 mm) |
| Width | 6.9 in (175 mm) |
| Height | 13.6 in (345 mm) |
| Category | US1CP4E22209 |
| Ohmic value | 28 Ohm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7732
