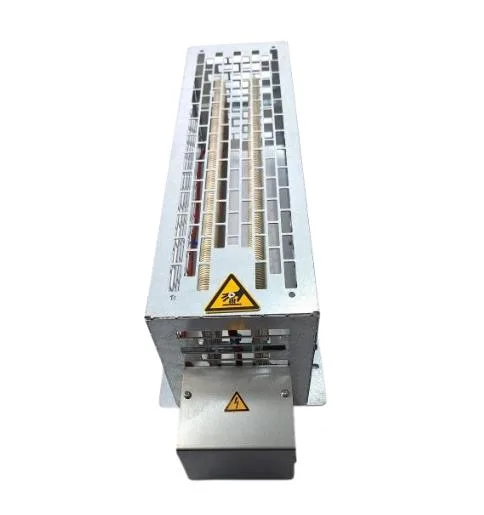

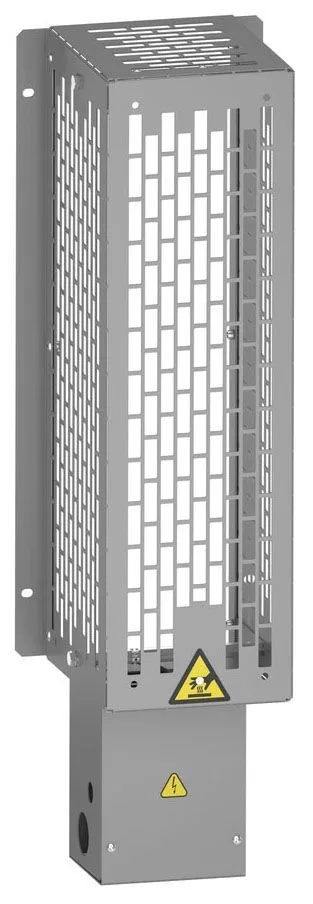

Schneider VW3A7734 Braking Resistor
MPNVW3A7734
Active
BRAKING RESISTOR 10OHM 0.96KW|BRAKING RESISTOR 10OHM 0.96KW
$311.15 – $568.17Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Range of product | Altivar |
| Product or component type | Braking resistor |
| [Ue] rated operational voltage | 24 V DC 250 V AC |
| Average power available | 0.96 kW 122 °F (50 °C) |
| Duty cycle | Light cycle (heavy duty) Light cycle (normal duty) Medium cycle (normal duty) Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle |
| IP degree of protection | IP20 |
| Electrical connection | terminal terminal <= 4 mm² / AWG 10 temperature control switch |
| Depth | 7.09 in (180 mm) |
| Width | 7.5 in (190 mm) |
| Height | 25.2 in (640 mm) |
| Category | US1CP4E22209 |
| Ohmic value | 10 Ohm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7734
