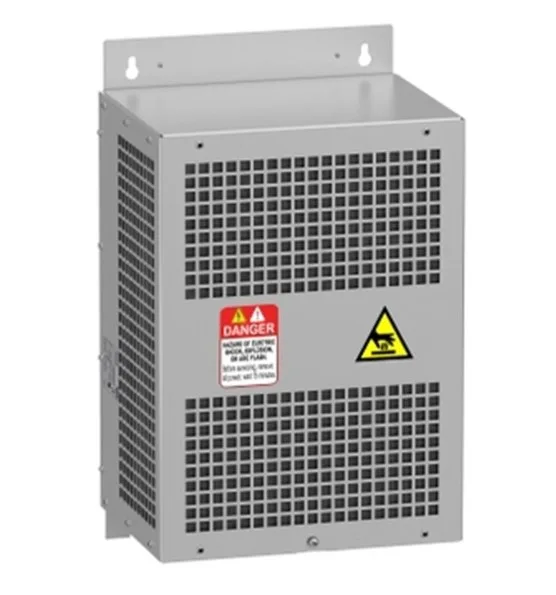

Schneider VW3A7737 Resistor Element
MPNVW3A7737
Active
VW3A7737 - 2.5 OHMS by SQUARE D
$473.71Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Range of product | Altivar |
| Product or component type | Braking resistor |
| [Ue] rated operational voltage | 24 V DC 250 V AC |
| Average power available | 3.2 kW 122 °F (50 °C) |
| Duty cycle | Light cycle (heavy duty) Light cycle (normal duty) Medium cycle (normal duty) Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle |
| IP degree of protection | IP23 |
| Electrical connection | terminal M12 bar wire drive |
| Depth | 17.7 in (450 mm) |
| Width | 21.3 in (540 mm) |
| Height | 19.09 in (485 mm) |
| Category | US1CP4E22209 |
| Ohmic value | 2.5 Ohm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7737
