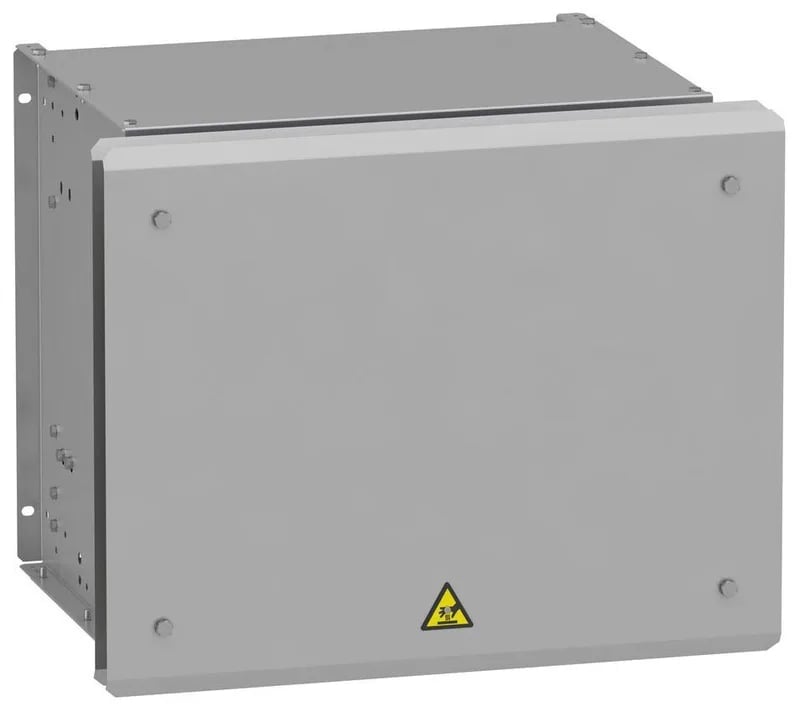

Schneider VW3A7748 Braking Resistor
MPNVW3A7748
Active
Square D VW3A7748 Braking Resistor|Square D VW3A7748 Braking Resistor
$2,215.00 – $3,923.03Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Range of product | Altivar |
| Product or component type | Braking resistor |
| [Ue] rated operational voltage | 24 V DC 250 V AC |
| Average power available | 5.1 kW 122 °F (50 °C) |
| Duty cycle | Medium cycle (normal duty) Medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle |
| IP degree of protection | IP23 |
| Electrical connection | terminal M12 bar wire drive |
| Depth | 25.6 in (650 mm) |
| Width | 21.3 in (540 mm) |
| Height | 19.09 in (485 mm) |
| Category | US1CP4E22209 |
| Ohmic value | 1.4 Ohm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7748
