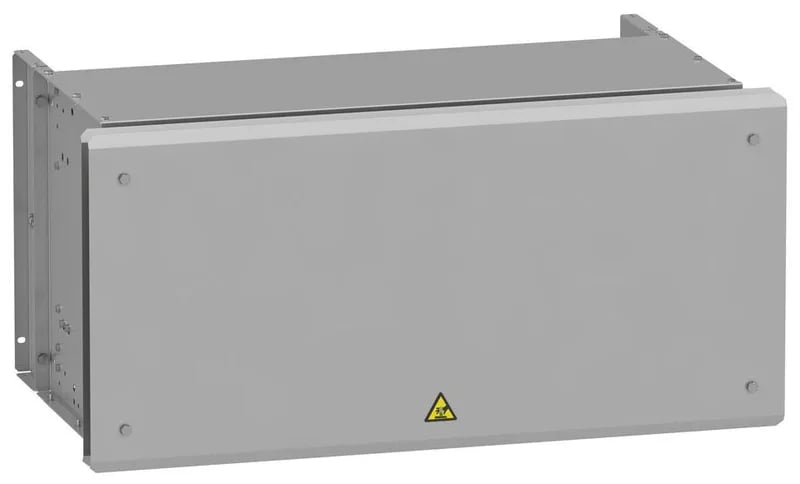

Schneider VW3A7753 Braking Resistor
MPNVW3A7753
Active
Square D VW3A7753 Braking Resistor|Square D VW3A7753 Braking Resistor
$1,080.77 – $1,945.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protection type | Thermal protection via drive or temperature control switch 120 °C |
| Product or component type | Braking resistor |
| [Ue] rated operational voltage | 24 V DC 250 V AC |
| Average power available | 14 kW 122 °F (50 °C) |
| Duty cycle | Severe cycle (heavy duty) Severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle |
| IP degree of protection | IP23 |
| Electrical connection | terminal M6 bar wire drive |
| Depth | 41.7 in (1060 mm) |
| Width | 21.3 in (540 mm) |
| Height | 23.8 in (605 mm) |
| Category | US1CP4E22209 |
| Ohmic value | 16 Ohm |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
VW3A7753
