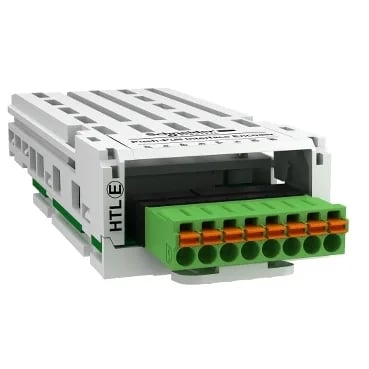

Schneider VW3AP3424 Drive Module
MPNVW3AP3424
Active
VW3AP3424 by SCHNEIDER ELECTRIC
$233.68Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | High threshold logic (HTL) |
| Connector type | 1 removable spring connector |
| Protection type | Short-circuit protection Overload protection |
| Range of product | Altivar |
| Product or component type | Encoder interface module |
| Supply voltage | 12 V DC 15 V DC 24 V DC |
| Maximum supply current | 0.2 A at 12 V DC 0.175 A at 15 V DC 0.1 A at 24 V DC |
| Maximum operating frequency | 12 kHz |
| Maximum cable distance between devices | 500 m |
| Input signal | Push-pull differential: A/AB/B Push-pull single ended: AB Push-pull single ended: A Open collector differential: A/AB/B Open collector PNP: AB Open collector NPN: AB Open collector PNP: A Open collector NPN: A |
| Condition of use | Cannot be ordered alone, only possible in combination with a standard enclosure |
MPN
VW3AP3424
