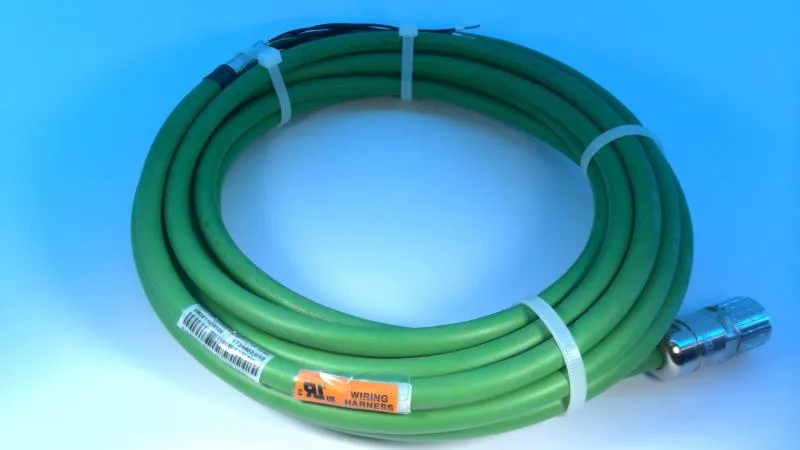

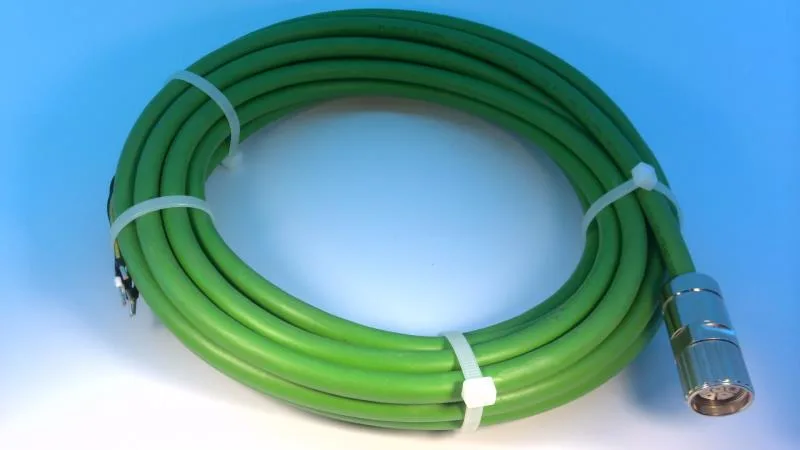

The VW3E1143R100 is a factory-assembled power cable for Axis 1 on Schneider Electric PacDrive 3 STS40, STS60, and STS80 servo drives. It runs 10 m with an M23 connector at the drive end and 1.5 mm² conductors — sized for the continuous current draw of those frame sizes without voltage drop that would trip a drive on undervoltage during a hard decel.
Metal-bodied M23 connector handles the mechanical retention and shielding continuity expected on a servo axis in a cabinet with high-vibration fans or adjacent contactors. The 1.5 mm² cross-section matches the terminal block clamp range on the STS drive power connector — no ferrule crimp needed if the stripped length is held to 8 mm.
