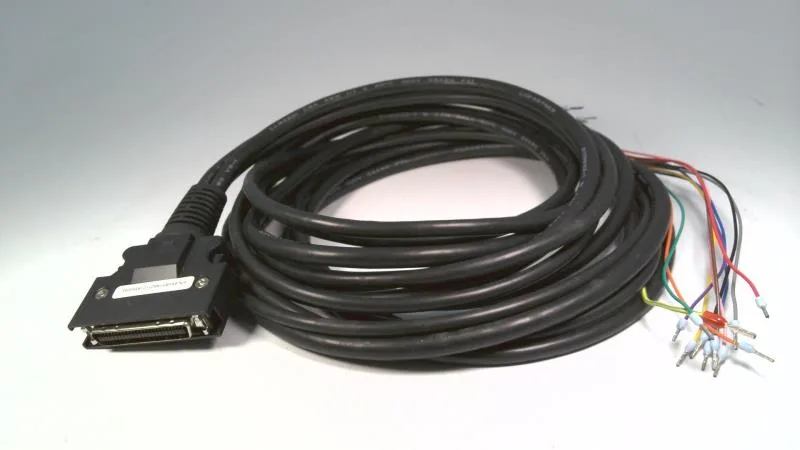

The Schneider Electric VW3M1C10R20 is a preassembled I/O and pulse train input (PTI) cordset for the Lexium 28 servo drive family. It connects the servo drive to a logic controller, carrying the step-and-direction command signals that govern motor position and speed. Cable length is 2 m (6.6 ft) — enough to bridge a typical panel-mounted drive to a controller in the same enclosure, but short enough to avoid signal degradation on the differential PTI pair. The servo-drive end terminates in a SUB-D 50 connector; the controller side is a free-end CN1 interface, so you strip and terminate to your PLC's pulse-train output card. No proprietary pinout on the free end — standard wiring practice applies.
Schneider VW3M1C10R20 Lexium 28 PTI Cable, 2m
MPNVW3M1C10R20
Active
Schneider Electric Lexium 28 series, pulse train input cable, preassembled I/O and PTI cordset, 2 m (6.6 ft), SUB-D 50 servo drive side, free end CN1 interface.
$55.88 – $132.90Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Pulse train input cable |
| Accessory category | Connection accessories |
| Accessory type | Preassembled I/O and PTI cordset |
| Destination / intended use | Between servo drive and logic controller |
| Product range | Lexium 28 |
| Parameter | Value |
|---|---|
| Cable length | 6.6 ft (2 m) |
| Electrical connection | Connector - SUB-D 50 servo drive side Free end CN1 interface |
Product details
MPN
VW3M1C10R20
