Schneider Electric VW3M3403
MPNVW3M3403
Active

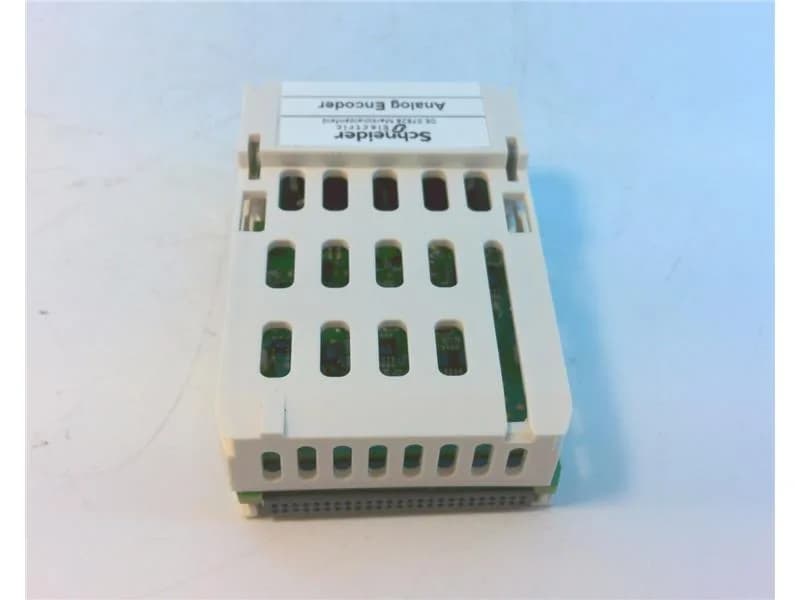

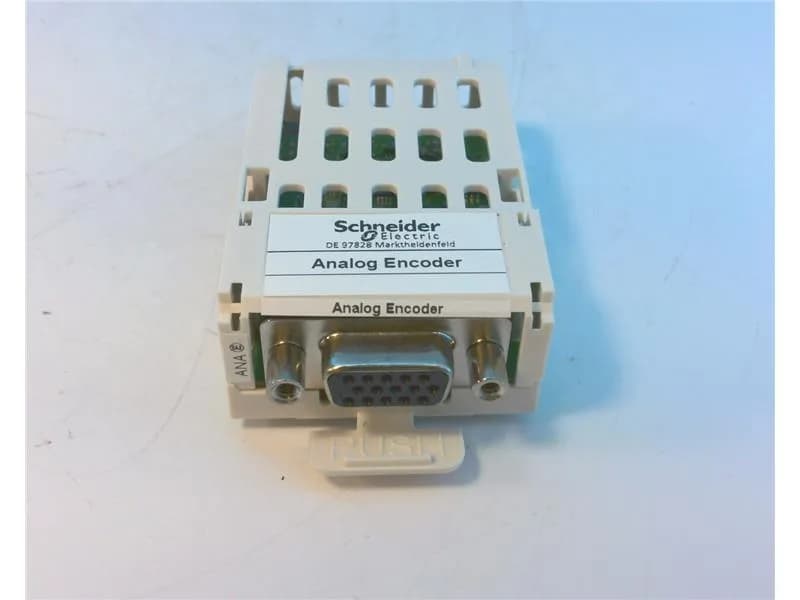

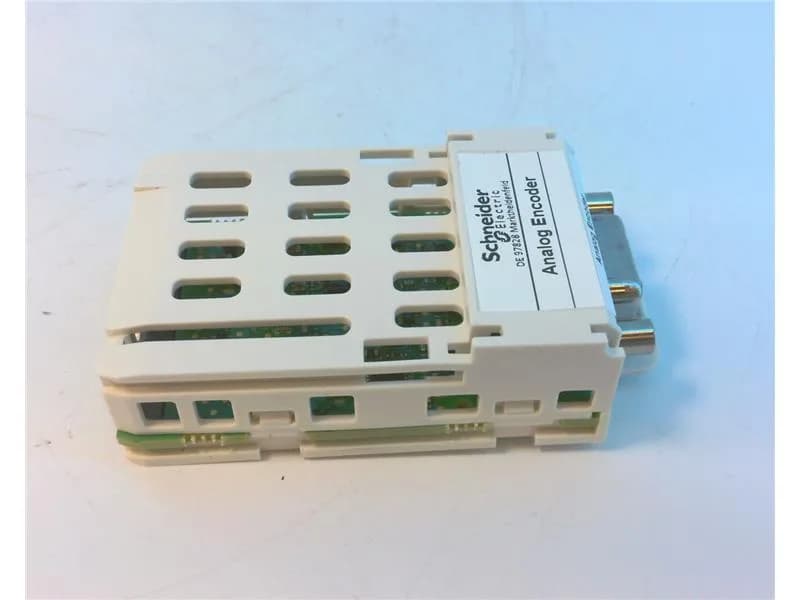

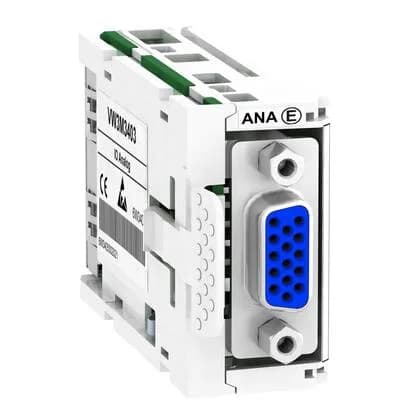

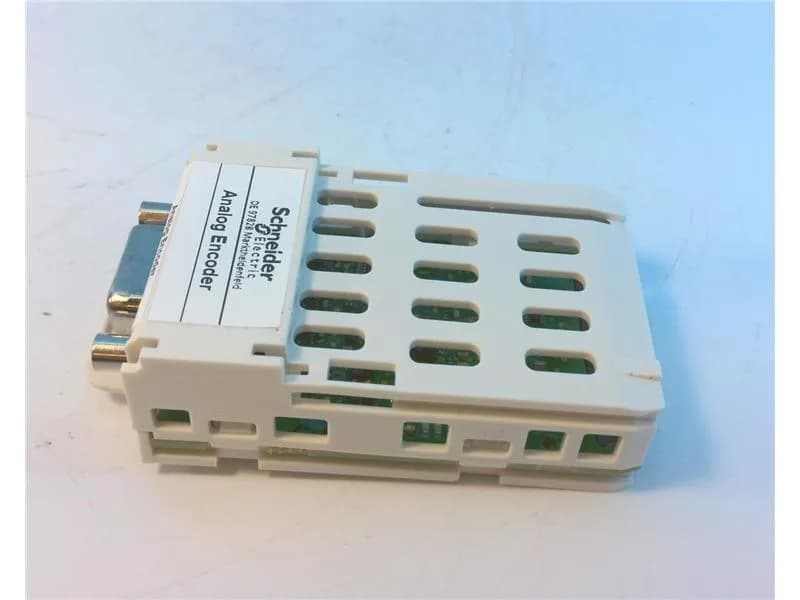

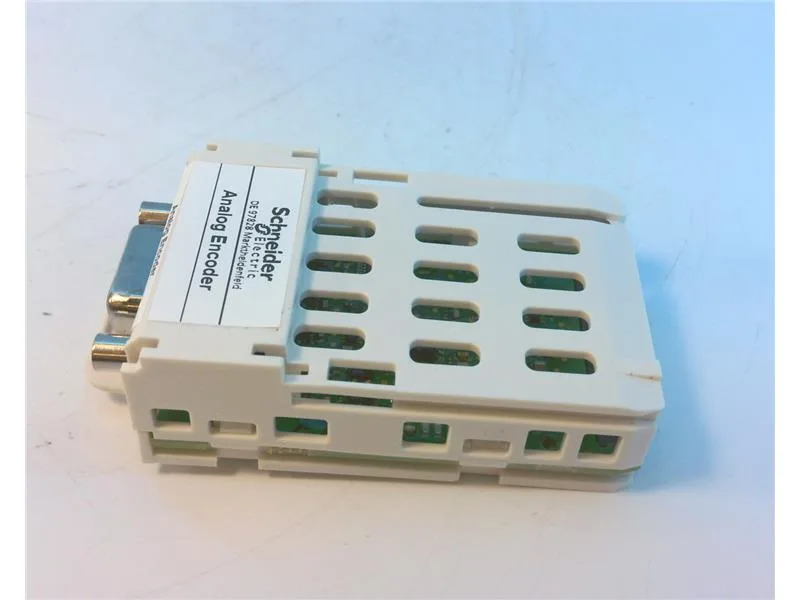

Encoder interface module, Lexium 32, card for analog input signals|Encoder interface module, Lexium 32, card for analog input signals
$143.51 – $247.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Encoder type | 1 Vpp 1 Vpp/Hall Hiperface |
| Range of product | Lexium 32 |
| Product or component type | Encoder interface module |
| Accessory (Separate part type) | Card with analog output |
| Supply voltage | 12 V Hiperface 5 V 1 Vpp 5 V 1 Vpp/Hall |
| Electrical connection | 1 female connector high definition SUB-D 15 |
| Category | US1PC5118263 |
| Accessory (separate part category) | Connection accessories |
| Accessory (separate part destination) | Machine and motor encoder |
MPN
VW3M3403
