Schneider VW3M4112 Lexium 23 Plus CN1 I/O connector (discontinued)

Overview

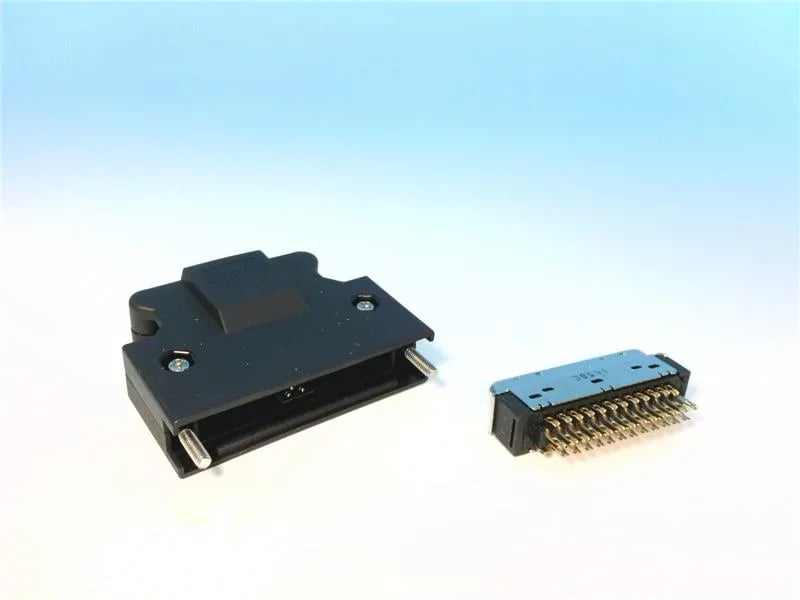

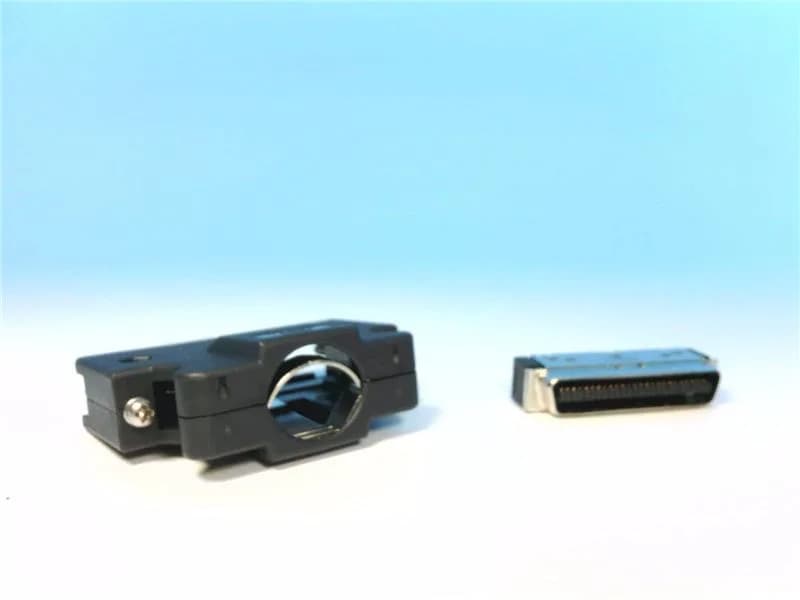

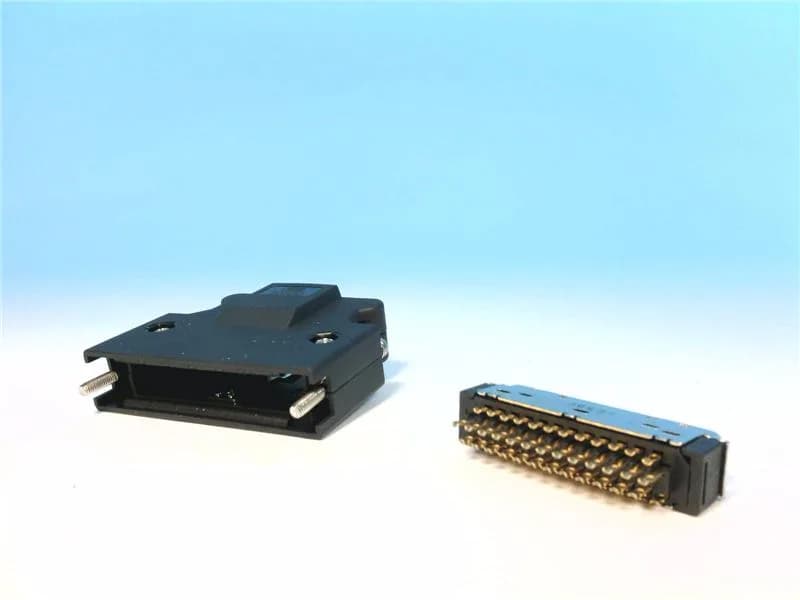

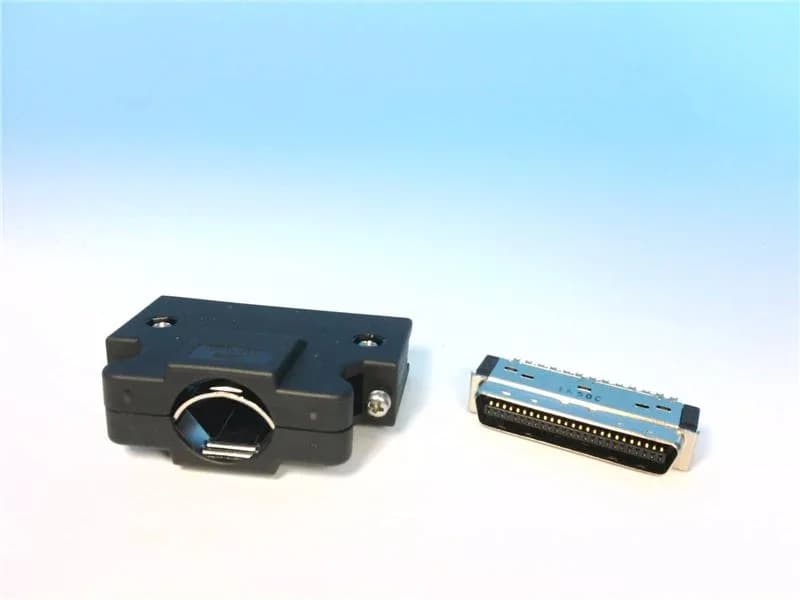

The VW3M4112 is a Schneider Lexium 23 Plus I/O connector that mates to the CN1 interface of the servo drive, serving as a connection accessory rather than an expansion module.

Unlike the VW3M3302, which is an I/O expansion module with 4 discrete inputs, 2 discrete outputs, and 2 analog inputs/outputs, the VW3M4112 is a passive connector — no signal conditioning or processing inside.
