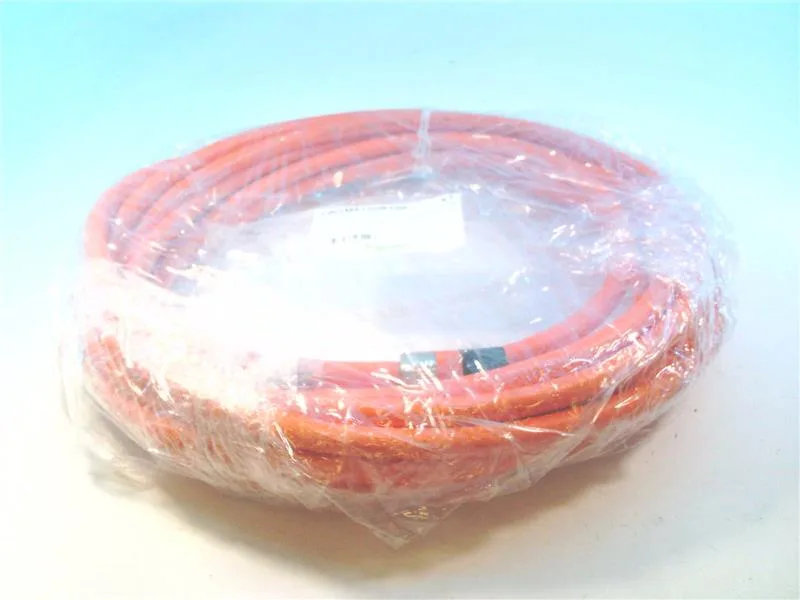

The VW3M5100R100 is a factory-assembled power cable for the Lexium 32 servo family, running between a BSH servomotor and the Lexium 32 drive. The 10 m (32.8 ft) length covers most machine-axis runs without a junction box; the YTECH 12 connector mates directly to the drive power terminals, so no field wiring of the motor power pair is needed.
The cable carries 4 x 1.0 mm² conductors for the motor power phases plus 2 x 0.75 mm² for the holding brake or encoder feedback, depending on the motor variant. That 0.75 mm² pair is sized for the brake coil current on a BSH motor — enough for the holding brake, not for a continuous-duty clutch. The 1.0 mm² power conductors handle the rated motor current of a Lexium 32 drive up to the cable's ampacity; no separate brake cable is required.
