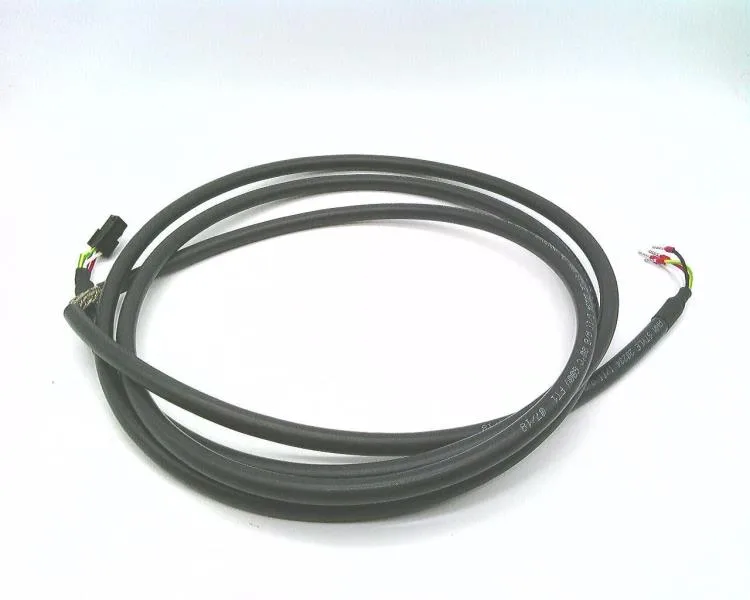

Schneider Electric VW3M5D1AR30 — Motor Control Accessories

VW3M5D1AR30 Power Cable, Lexium 28, 3m Shielded, 4x AWG 18

MPNVW3M5D1AR30
Active

Schneider Electric Lexium 28 series, power cable VW3M5D1AR30, preassembled shielded cordset, 3 m (9.8 ft) length, 4 x AWG 18 conductors, Molex 4-pin servo motor side to free end servo drive side.

$35.56Ref. price · indicative, final on quote
Schneider Electric VW3M5D1AR30 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VW3M5D1AR30 — Identification
ParameterValue
Product / component typePower cable
Accessory categoryConnection accessories
Accessory typePreassembled power cordset
Destination / intended useBetween servo motor and servo drive
Product rangeLexium 28
VW3M5D1AR30 — Cable & Connector
ParameterValue
Cable length9.8 ft (3 m)
Electrical connectionFree end servo drive side Connector - Molex 4-pin servo motor side
VW3M5D1AR30 — Other specifications
ParameterValue
AWG gauge4 x AWG 18

Product details

What this cable does in a Lexium 28 system

The VW3M5D1AR30 is a preassembled shielded power cordset that connects a Lexium 28 servo motor to its drive. It runs 3 m (9.8 ft) between the two, carrying 4 conductors at AWG 18. The servo motor end terminates in a Molex 4-pin connector; the drive end is a free-wire tail, so you land it directly in the drive's power terminals. Shielded construction keeps switching noise from coupling into nearby encoder or I/O lines — important in a cabinet where the drive and motion controller share a backplane.

Frequently asked questions

What is the cable length and conductor gauge for VW3M5D1AR30?

The cable is 3 m (9.8 ft) long with 4 conductors at AWG 18 (0.82 mm²).

What connectors does VW3M5D1AR30 use?

The servo motor side has a Molex 4-pin connector; the servo drive side is a free end for direct terminal connection.

Where can I buy VW3M5D1AR30?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing confirmed at quote time.
