Schneider Electric VW3M5D1FR50 — Motor Control Accessories

VW3M5D1FR50 Power Cable, 5m, Lexium 28, AWG 18

MPNVW3M5D1FR50
Active

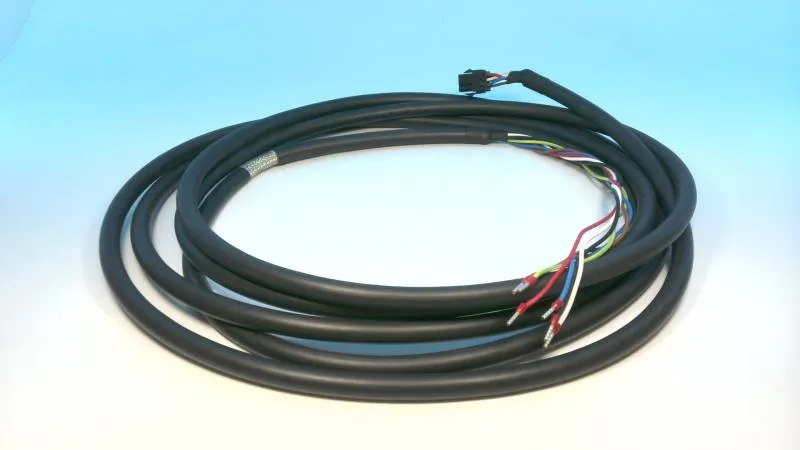

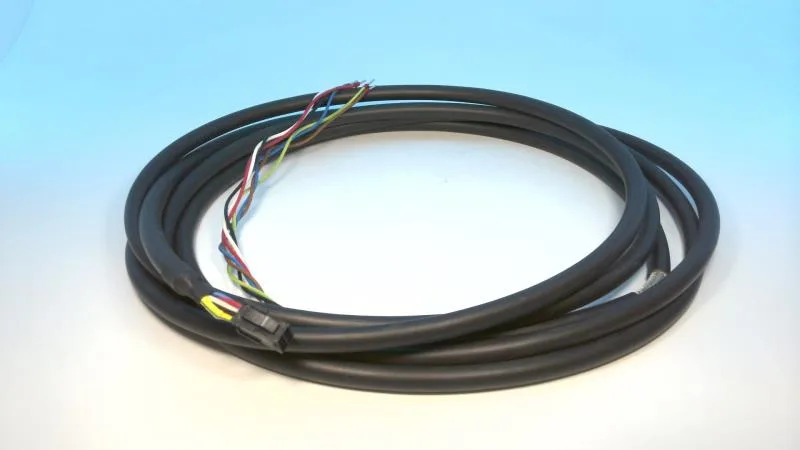

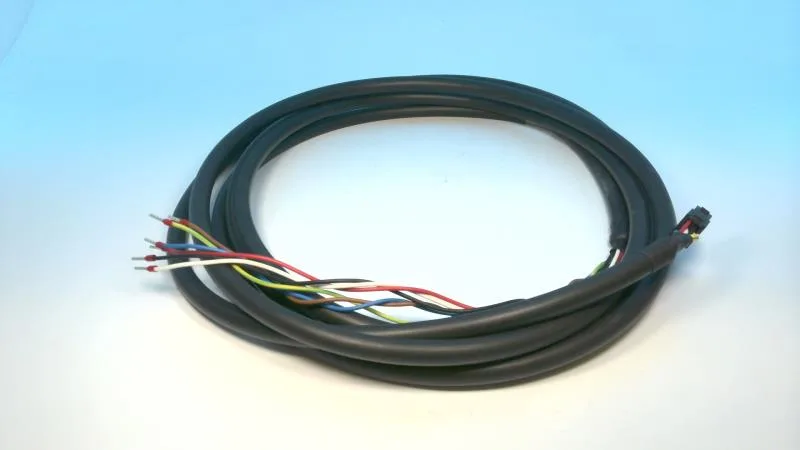

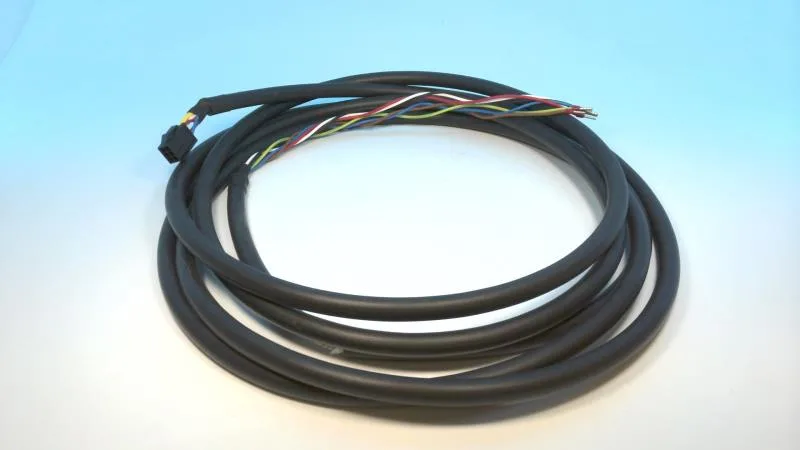

Schneider Electric Lexium 28 series, preassembled power cordset, VW3M5D1FR50, 5 m (16.4 ft), 6 x AWG 18, free end servo drive side, Molex 6-pin servo motor side.

$68.58Ref. price · indicative, final on quote
Schneider Electric VW3M5D1FR50 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

VW3M5D1FR50 — Identification
ParameterValue
Product / component typePower cable
Accessory categoryConnection accessories
Accessory typePreassembled power cordset
Destination / intended useBetween servo motor and servo drive
Product rangeLexium 28
VW3M5D1FR50 — Cable & Connector
ParameterValue
Cable length16.4 ft (5 m)
Electrical connectionFree end servo drive side Connector - Molex 6-pin servo motor side
VW3M5D1FR50 — Other specifications
ParameterValue
AWG gauge6 x AWG 18

Product details

The VW3M5D1FR50 is a preassembled power cordset that connects a Lexium 28 servo motor to its drive. One end carries a Molex 6-pin connector that mates to the motor; the other is a free-end cable for termination inside the drive-side junction box or panel gland. The 5 m (16.4 ft) length covers typical cabinet-to-machine distances without a splice point.

Cable construction and wiring

Six conductors of AWG 18 — three phases, two for the holding brake, and one ground. The free end lets the panel builder land the conductors directly on the drive power terminals or a terminal block, keeping the wiring path short and avoiding an intermediate connector that could vibrate loose on a moving machine.

Listed as active in production.

Frequently asked questions

What is the closest alternative to VW3M5D1FR50 in the Lexium 28 family?

The VW3M5D1FR50 is the 5 m variant. Shorter and longer preassembled cordset lengths are available in the same Lexium 28 range; the connector and conductor count remain identical, so the choice is driven by the cable run distance between motor and drive.

What is the AWG gauge and conductor count?

Six conductors of AWG 18, covering three motor phases, two brake wires, and one ground.

What compliance documentation does Schneider provide for this cable?

Standard Schneider Electric documentation for the Lexium 28 accessory line applies. Specific RoHS, REACH, or UL declarations should be requested at quote time, as they are not listed in the core product spec.

MPN
VW3M5D1FR50
