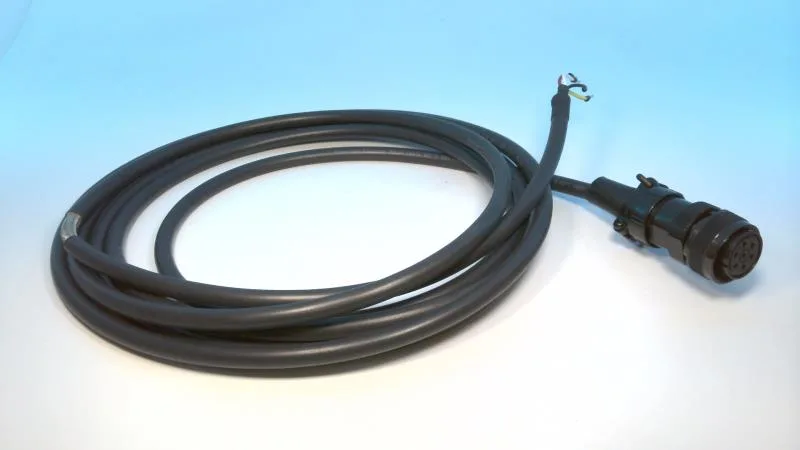

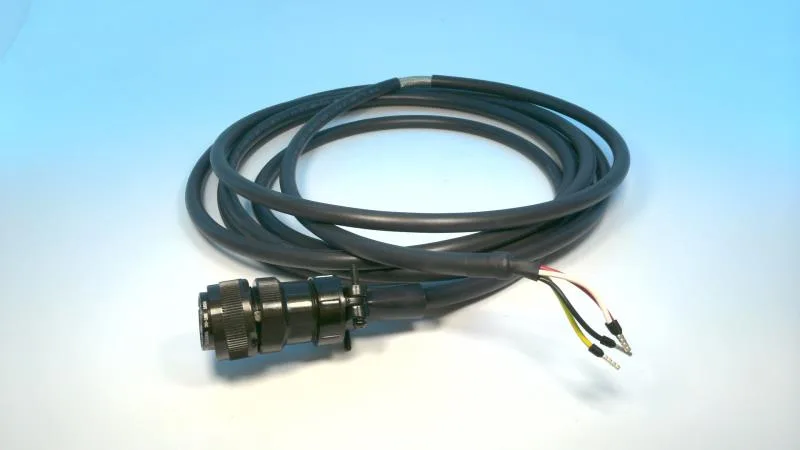

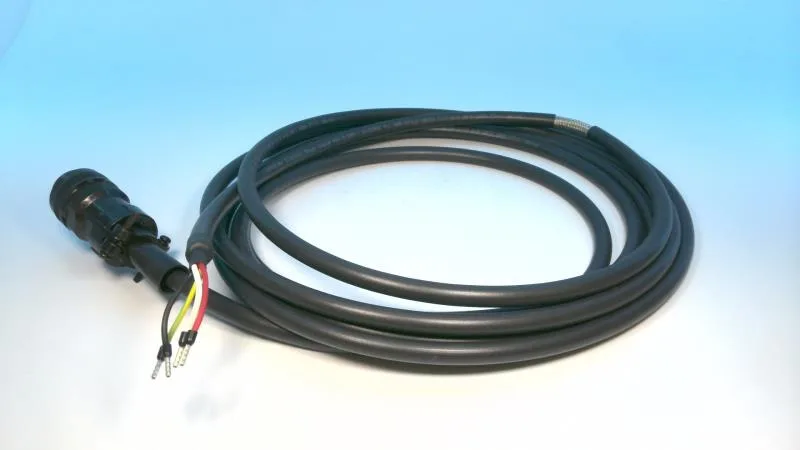

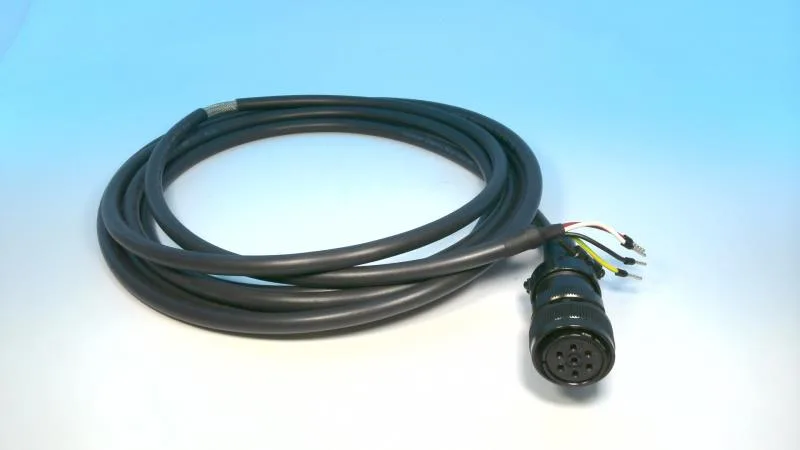

The VW3M5D2AR50 is a shielded power cable purpose-built for the Lexium 28 servo drive family, connecting the drive to a BCH2 servo motor. It runs 5 m (16.4 ft) with four AWG 16 conductors — sized for the motor power circuit, not signal or feedback. The drive-side end terminates in a MIL-spec circular connector; the motor side is a free end for direct gland entry into the motor junction box.
Shielded construction is the critical detail here: the braid ties back to the drive's EMC ground clamp, keeping radiated emissions within the limits the Lexium 28 drive is certified for. On a panel build, route this cable separate from any encoder or feedback lines — the datasheet recommends a minimum 20 cm air gap to avoid coupling motor PWM noise into the position signal. The free-end motor side means you terminate the conductors into the motor's own terminal block; strip length and ferrule size follow the motor manufacturer's instructions, not the cable's.
