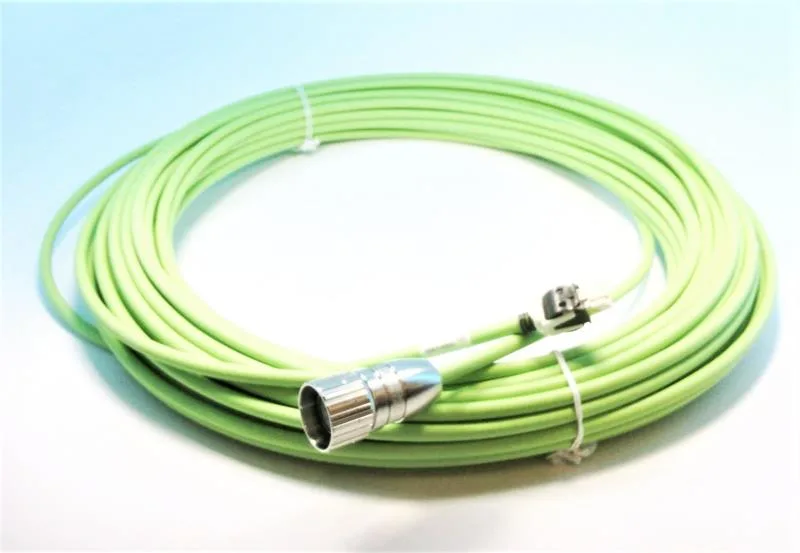

The VW3M8101R200 is a Schneider Electric SinCos Hiperface encoder cable, 20 m long, designed to connect a servo motor to its drive. The cable assembly carries five twisted pairs of 0.25 mm² conductors plus two 0.5 mm² conductors, terminated in a 12-way female Molex on the drive side and an industrial M23 connector on the motor side. This is a dedicated feedback cable for Hiperface absolute encoder signals, not a generic power or hybrid cable.
Schneider VW3M8101R200 SinCos Hiperface Encoder Cable, 20 m
MPNVW3M8101R200
Obsolete
Schneider Electric VW3M8101R200, SinCos Hiperface encoder cable, 20 m, 5 x (2 x 0.25 mm²) + (2 x 0.5 mm²), Molex 12-way to M23.
$431.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Accessory category | Connection accessories |
| Accessory type | Connecting cable |
| Accessory designation | SinCos Hiperface encoder cable |
| Destination / intended use | Between servo motor and servo drive |
| Parameter | Value |
|---|---|
| Cable length | 20 m |
| Cable composition | 5 x (2 x 0.25 mm²) + (2 x 0.5 mm²) |
| Electrical connection | 1 connector 12-way female Molex (servo drive side) 1 connector industrial M23 (servo motor side) |
Product details
Frequently asked questions
What is the cable length of VW3M8101R200?
The VW3M8101R200 is a 20 m SinCos Hiperface encoder cable.
What connectors does VW3M8101R200 use?
The VW3M8101R200 has a 12-way female Molex connector on the servo drive side and an industrial M23 connector on the servo motor side.
MPN
VW3M8101R200
