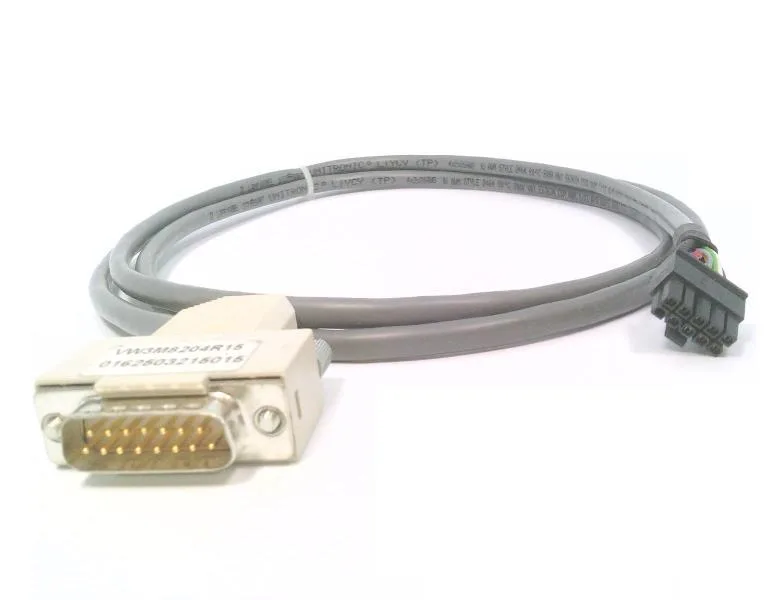

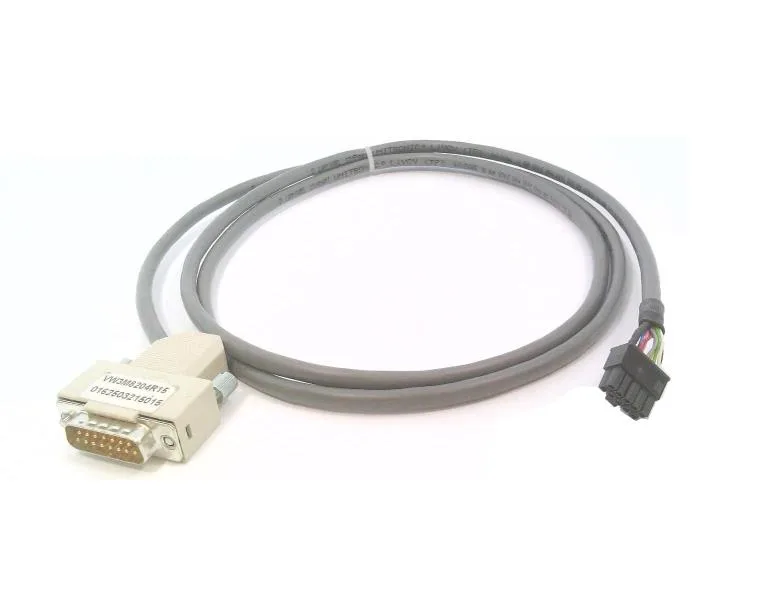

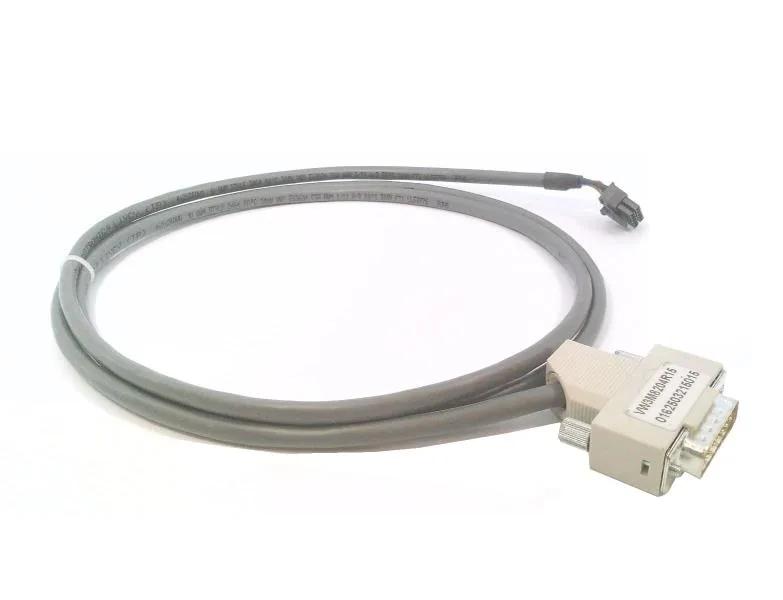

Schneider Electric VW3M8204R15 is a preassembled connecting cable that links a Lexium 05 servo drive (via its CN5 Molex 10-way connector) to a Modicon Premium motion control module (via a SUB-D 15 connector). Cable length is 4.9 ft (1.5 m) — enough to bridge a drive mounted in the cabinet door to the rack-mounted module without excess loop.
Fit & Deployment
The cable is specific to the Lexium 05 drive series — it mates with the CN5 pulse/direction input port on that drive. The other end terminates in a 15-pin SUB-D that plugs into a Modicon Premium motion module (TSXCFY.. series). If you are retrofitting or repairing a line with that combination, this is the factory cable; no adapter or field-wiring alternative is documented.
