The VW3M8222R1000 is a Lexium-series encoder cable from Schneider Electric, purpose-built for creating control cordsets that interface SinCos Hiperface encoders between servo motors and servo drives. Its 100 m reel length (328.08 ft) supports on-site cutting to exact run lengths, avoiding connectorized fixed-length cables that waste slack or fall short on longer axis spans. Cable composition is 3 x (2 x 0.14 mm²) twisted pairs plus 2 x 0.34 mm² conductors — the pairs carry differential encoder signals (Sin/Cos, data), while the larger-gauge wires handle power and ground for the encoder electronics. For Hiperface interfaces, that pairing is critical: the 0.14 mm² twisted pairs maintain signal integrity over the 100 m run, and the 0.34 mm² wires keep voltage drop within the encoder's supply tolerance.

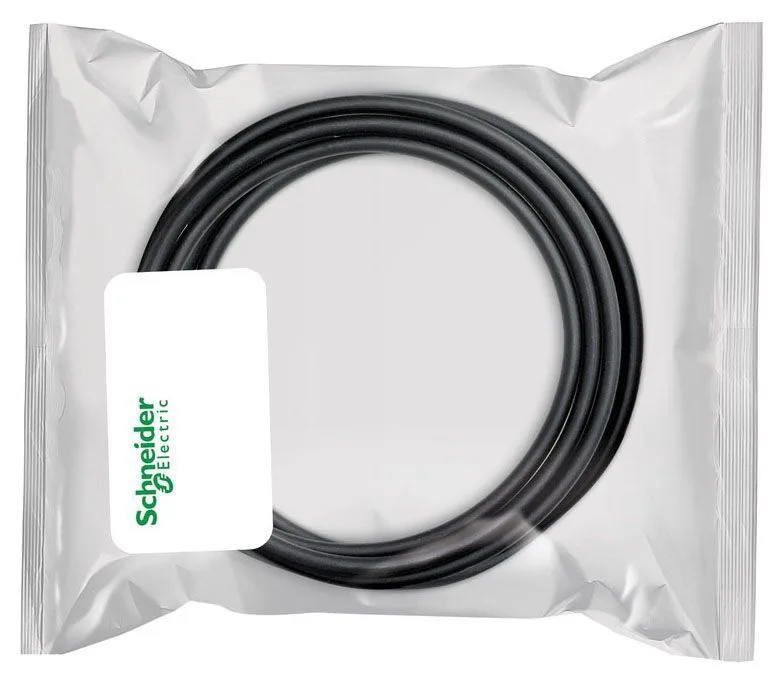

VW3M8222R1000 Lexium encoder cable, 100 m, SinCos Hiperface
MPNVW3M8222R1000
Active
Schneider Electric Lexium series, encoder cable VW3M8222R1000, 100 m, 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²), for SinCos Hiperface encoders.
$307.34 – $825.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Connecting cable |
| Accessory category | Connection accessories |
| Accessory type | Encoder cable |
| Destination / intended use | From servo motor to servo drive |
| Product range | Lexium |
| Parameter | Value |
|---|---|
| Cable length | 328.08 ft (100 m) |
| Cable composition | 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²) |
| Parameter | Value |
|---|---|
| Device application | For creating control cordsets for SinCos Hiperface encoders |
Product details
Frequently asked questions
What is the cable length of VW3M8222R1000?
The cable is supplied on a 100 m reel (328.08 ft), allowing the installer to cut custom lengths for each axis rather than using fixed-length pre-terminated cables.
What cable construction does VW3M8222R1000 use?
It uses three twisted pairs of 2 x 0.14 mm² for differential encoder signals (Sin, Cos, data) plus two separate 0.34 mm² conductors for encoder power and ground, all in one jacket.
