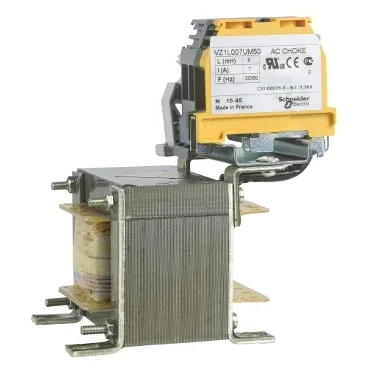

Schneider Electric VZ1L007UM50
MPNVZ1L007UM50
Active
line choke - 5 mH - 7 A - 1 phase - 20 W - for variable speed drive
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Altivar |
| Product or component type | Line choke |
| Maximum voltage drop at rated load | 5 % |
| Line rated current | 7 A |
| Power supply frequency | 50...60 Hz |
| Phases | Single phase |
| IP degree of protection | Choke IP00 Terminals IP20 |
| Depth | 3.7 in (95 mm) |
| Width | 2.4 in (60 mm) |
| Height | 3.9 in (100 mm) |
| Standards | IEC 60076 (with HD398) VDE 0160 level 1 EN 50178 |
| Category | US1PC5118305 |
| Thermal losses | 20 W |
| Device application | Reduction of current harmonics |
| Value of inductance | 5 mH |
MPN
VZ1L007UM50
