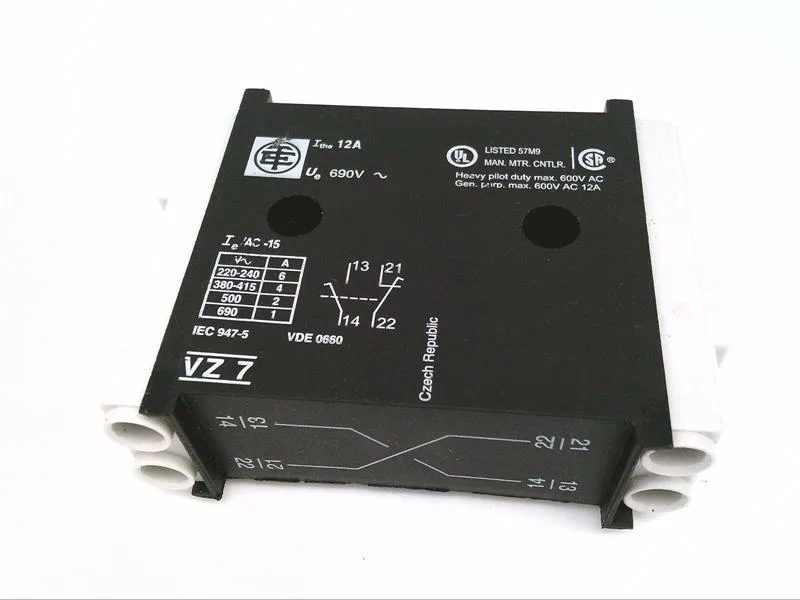

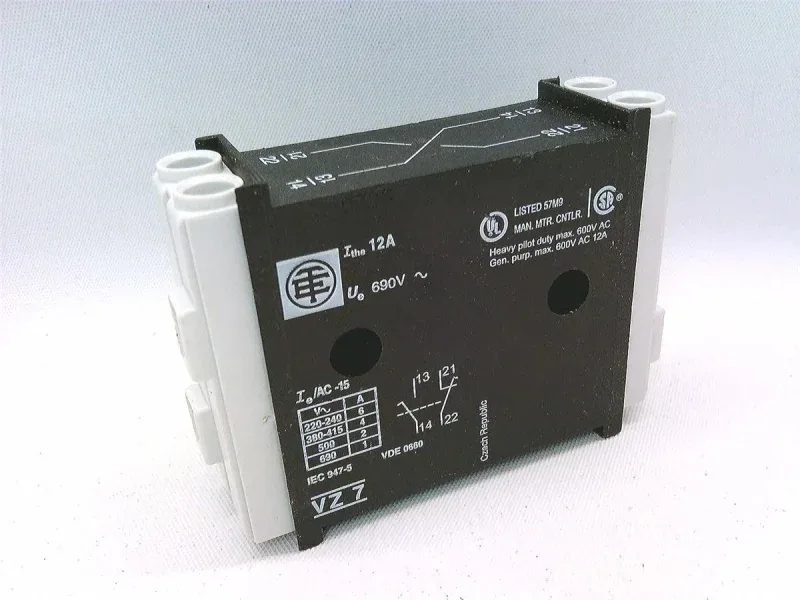

Schneider Electric VZ7
MPNVZ7
Active
TeSys VARIO - auxiliary contact block - 1 NC early-break+1 NO late-make|Auxiliary contact block,TeSys Control,1 NC early break+1 NO late make,for V02-V6
$6.26 – $63.97Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC DC |
| Product or component type | Auxiliary contact block |
| Contacts type and composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Network frequency | 50/60 Hz |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting location | Left Right |
| Connections - terminals | screw clamp terminals 2 0.001...0.002 in² (0.75...1.5 mm²) flexible - with cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) solid |
| Depth | 1.9 in (48.5 mm) |
All specifications
| Parameter | Value |
|---|---|
| Width | 0.8 in (20 mm) |
| Height | 2.6 in (65 mm) |
| Electrical durability | 30000 cycles DC-11 100000 cycles AC-15 |
| Mechanical durability | 100000 cycles |
| Standards | IEC 60947-5 |
| Range | TeSys |
| Category | US10CP121730 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Contact operation | Late-make 1 NO Early-break 1 NC |
| Device short name | VZ |
| Safety category | High performance |
| Tightening torque | 6.2 lbf.in (0.7 N.m) screw clamp terminals |
| Protective treatment | TC |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
VZ7
