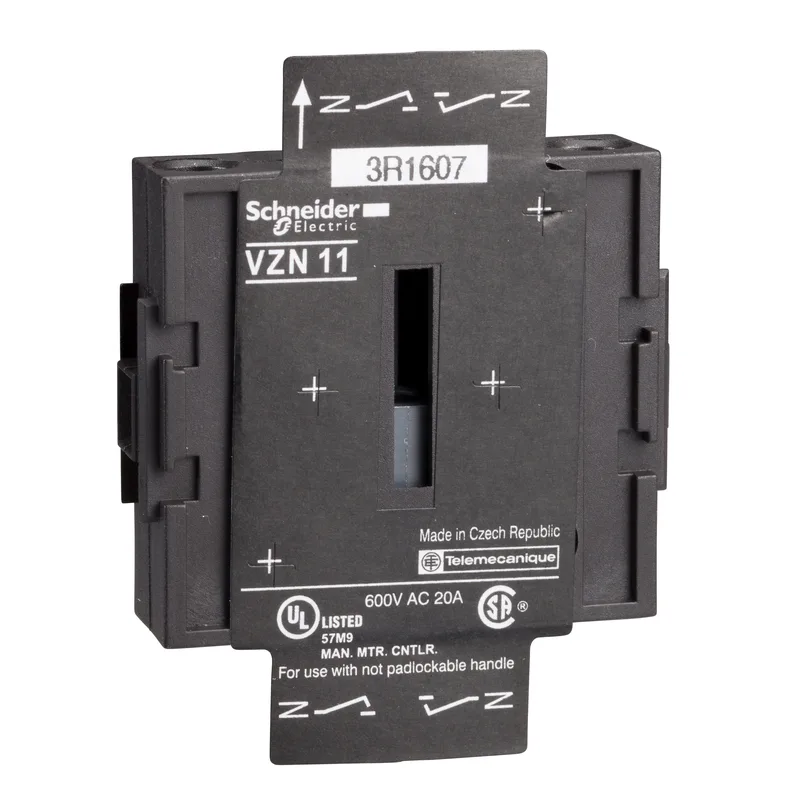

Schneider Electric VZN11
MPNVZN11
Active
SQUARE D VZN11: NEUT.POLE W/EARLY MAKE/LATE BRK.CONT.10/16 AMP
$3.71 – $27.59Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC DC |
| Product or component type | Additional neutral block |
| Contacts type and composition | 1 NO |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 20 A |
| [Ithe] conventional enclosed thermal current | 16 A |
| Network frequency | 50/60 Hz |
| Poles description | 1N |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting location | Right |
| Connections - terminals | screw clamp terminals 0.006 in² (4 mm²) flexible - with cable end screw clamp terminals 0.006 in² (4 mm²) solid |
All specifications
| Parameter | Value |
|---|---|
| Depth | 1.5 in (39 mm) |
| Width | 0.5 in (12 mm) |
| Height | 1.8 in (45.5 mm) |
| Electrical durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Mechanical durability | 50000 cycles |
| Standards | IEC 60947-3 |
| Range | TeSys |
| Category | US10CP121730 |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-1 |
| Contact operation | Early make, late break |
| Device short name | VZN |
| Safety category | Standard |
| Tightening torque | 6.2 lbf.in (0.7 N.m) screw clamp terminals |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz 1 gn) IEC 60068-2-6 Shocks 11 ms 15 gn) IEC 60068-2-27 |
| Ambient air temperature for operation | -4...122 °F (-20...50 °C) |
MPN
VZN11
