Schneider Electric XACS412
MPNXACS412
Obsolete

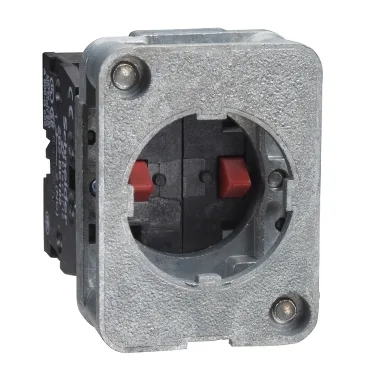

Contact block, Harmony XAC, single contact, spring return, front mounting, 40mm horizontal/30mmVertical fixing centres, 1NC
$5.59 – $24.79Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XAC |
| Type of operator | Spring return |
| Contact block type | Single |
| Electrical circuit type | Control circuit |
| Product or component type | Contact block |
| Contacts type and composition | 1 NC |
| Voltage | 500 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Short-circuit protection | 10 A fuse protection cartridge gG |
| [Ithe] conventional enclosed thermal current | 10 A |
| Rated operational power in | 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C |
| Mounting of block | Front mounting |
All specifications
| Parameter | Value |
|---|---|
| Terminal identifier | (13-14)NO (11-12)NC |
| Connections - terminals | Screw clamp terminals, 1 x 2.5 mm² with or without cable end Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
| Terminals description ISO n°1 | (11-12)NC |
| Maximum resistance across terminals | 25 MOhm |
| Shock resistance | 100 gn IEC 60068-2-27 |
| Vibration resistance | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Mechanical durability | 1000000 cycles |
| Standards | IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-5-1 |
| Category | US10CS222473 |
| Component name | XACS |
| Contact operation | Slow-break |
| Mechanical interlocking | Without mechanical interlock |
| Vertical fixing centres | 1.2 in (30 mm) |
| Contact code designation | A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A |
| Horizontal fixing centres | 1.6 in (40 mm) |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
XACS412
