Schneider Electric XALD101H29
MPNXALD101H29
Active

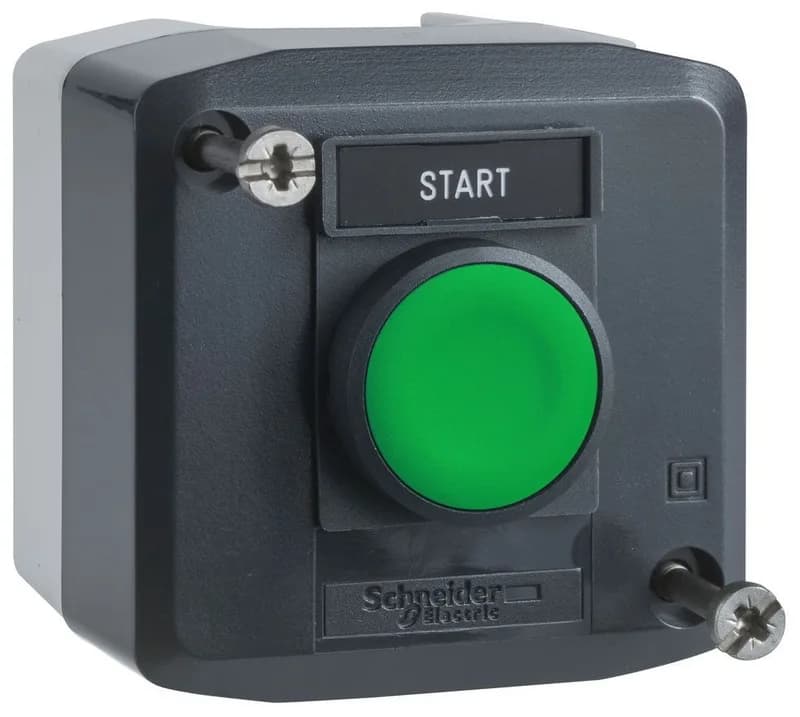

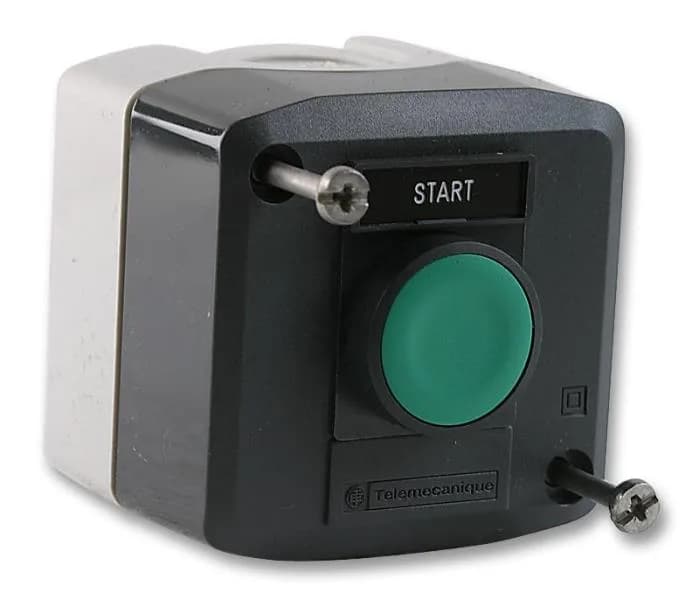

Square D XALD101H29 Pushbutton|Square D XALD101H29 Pushbutton
$15.24Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XALD |
| Product or component type | Complete control station |
| Voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| [Ie] rated operational current | 6 A 120 V, AC-15, A600 IEC 60947-5-1 3 A 240 V, AC-15, A600 IEC 60947-5-1 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 0 |
| IK degree of protection | IK03 conforming to IEC 62262 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
All specifications
| Parameter | Value |
|---|---|
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Colour of base of enclosure | Light grey RAL 7035) |
| Cable entry | 1 knock-out for cable entry 0.6 in (14 mm) 2 knock-outs for Pg 13 cable gland and ISO M20 0.5 in (12 mm) |
| Connections - terminals | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Material | Polycarbonate |
| Colour of cover | Dark grey RAL 7016) |
| Contacts material | Silver alloy (Ag/Ni) |
| Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Mechanical durability | 10000000 cycles |
| Standards | JIS C8201-5-1 IEC 60947-5-5 IEC 60947-1 CSA C22.2 No 14 UL 508 IEC 60947-5-4 IEC 60947-5-1 JIS C8201-1 |
| Category | US10CS222475 |
| Operating force | 3.8 N NO changing electrical state |
| Marking location | Marking on legend holder |
| Operating travel | 0.1 in (2.6 mm) NO changing electrical state) 0.2 in (4.3 mm) total travel) |
| Operator profile | 1 flush push-button |
| Positive opening | Without |
| Contact operation | Slow-break |
| Device short name | XALD |
| Tightening torque | 7.08...10.6 lbf.in (0.8...1.2 N.m) IEC 60947-1 |
| Product destination | For XB5 Ø 22 mm control and signalling units |
| Shape of screw head | Cross Philips no 1 Cross pozidriv No 1 Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Overvoltage category | Class II conforming to IEC 60536 |
| Protective treatment | TH |
| Operators description | Green ''START'' 1 NO |
| Electrical reliability | Λ < 10exp(-6) 5 V 1 mA IEC 60947-5-4 Λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4 |
| Number of key switches | 0 |
| Number of push buttons | 1 |
| Number of indicator lights | 0 |
| Control station application | Start function |
| Control station composition | 1 flush push-button, green 1 NO START |
| Number of command positions | 1 |
| Number of selector switches | 0 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
| Number of mushroom-shaped push-buttons | 0 |
MPN
XALD101H29
