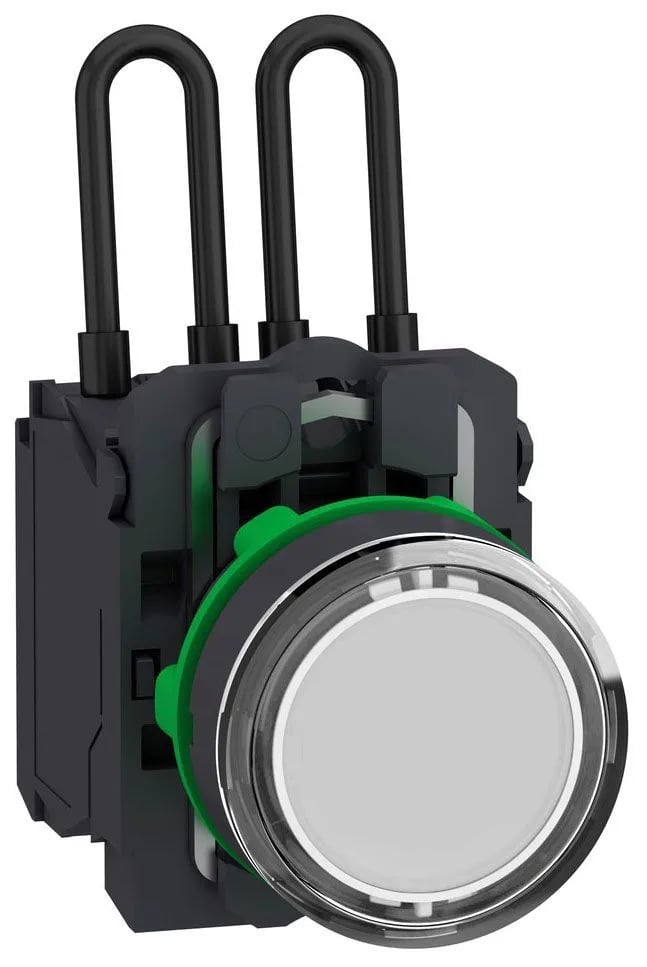

Schneider Electric XB5AW21B5
MPNXB5AW21B5
Active
Square D XB5AW21B5 Pilot Light|Square D XB5AW21B5 Pilot Light
$155.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Signalling type | Steady |
| Range of product | Harmony XB5 |
| Product or component type | Push-to-test pilot light |
| Surge withstand | 1 kV |
| Supply voltage | 24 V AC/DC 50/60 Hz |
| Voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Current consumption | 18 mA |
| IK degree of protection | IK05 conforming to IEC 50102 |
| IP degree of protection | IP66 IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| Mounting diameter | 0.9 in (22.5 mm) |
All specifications
| Parameter | Value |
|---|---|
| Connections - terminals | Screw clamp terminals, Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| Depth | 2.2 in (55 mm) |
| Width | 1.2 in (30 mm) |
| Height | 1.7 in (42 mm) |
| Bezel material | Plastic |
| Embedding depth | 1.8 in (46 mm) |
| Light source colour | White |
| Fixing collar material | Plastic |
| Cap (operator or lens colour) | White |
| Standards | IEC 60947-5-4 UL 508 GB 14048.5 IEC 60947-5-1 JIS C8201-5-1 CSA C22.2 No 14 IEC 60947-1 JIS C8201-1 |
| Category | US10CS222467 |
| Light source | Universal LED |
| Service life | 1.5 year(s) |
| Device short name | XB5 |
| Tightening torque | 7.08...10.6 lbf.in (0.8...1.2 N.m) |
| Overvoltage category | Class II conforming to IEC 60536 |
| Protective treatment | TH |
| Shape of signaling unit head | Round |
| Sale per indivisible quantity | 1 |
| Resistance to high pressure washer | 1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
XB5AW21B5
