Schneider Electric XB5DTGM3
MPNXB5DTGM3
Active

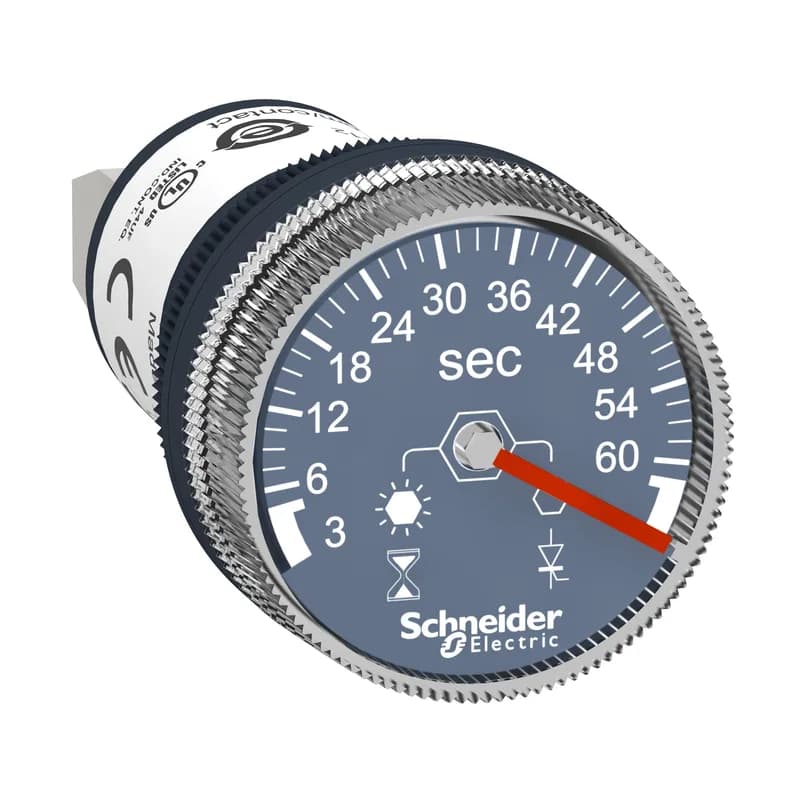

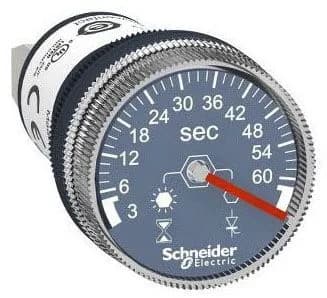

HARMONY XB5, PANEL MOUNTED TIMER
$39.13 – $65.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Output signal | Thyristor |
| Protection type | Overvoltage protection |
| Time delay type | A |
| Range of product | Harmony XB5 |
| Product or component type | Timer |
| Voltage drift | +/- 0.2 %/V |
| Surge withstand | 2 kV, level 3 IEC 61000-4-5 |
| Supply voltage limits | 93.5...253 V AC/DC |
| Supply voltage | 110...230 V AC/DC |
| Voltage drop in closed state | 5 V |
| Voltage | 250 V IEC 60947-1 250 V IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 4 kV IEC 60664-1 |
All specifications
| Parameter | Value |
|---|---|
| Minimum switching current | 10 mA |
| Temporary permissible current | 10 A 0.01 s |
| Residual current in open state | 5 mA |
| Output short-circuit protection | No |
| Power consumption in | 1.5 VA |
| IP degree of protection | IP65 front: conforming to IEC 60529 IP20 back: conforming to IEC 60529 |
| Mounting diameter | 0.9 in (22 mm) |
| Connections - terminals | Screw terminals 1 x 4 mm² IEC 60947-1 Screw terminals 1 x 2.5 mm² IEC 60947-1 |
| Pollution degree | 3 IEC 60664-1 |
| Shock resistance | +/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27 |
| Vibration resistance | 0.15 mm (f= 10...60 Hz) conforming to IEC 60068-2-6 2 gn (f= 60...150 Hz) conforming to IEC 60068-2-6 |
| Depth | 1.1 in (29 mm) |
| Width | 1.1 in (29 mm) |
| Height | 2.4 in (62 mm) |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Standards | IEC 61812-1 UL 508 |
| Category | US10CS200028 |
| Diameter | 1.1 in (29 mm) |
| Reset time | 30 ms after time delay on de-energisation 60 ms during time delay on de-energisation |
| Panel thickness | 0.04...0.2 in (1...6 mm) |
| Repeat accuracy | +/- 0.5 % |
| Local signalling | LED green, steady timing in progress LED, off no timing in progress and output relay energised |
| Time delay range | 3...60 s |
| Temperature drift | +/- 0.05 %/°C |
| Tightening torque | 4.4 lbf.in (0.5 N.m) |
| Device presentation | Monolithic product |
| Dielectric strength | 1500 V IEC 61812-1 |
| Overvoltage category | Class 3 conforming to IEC 60536 Class 3 conforming to IEC 60664-1 |
| Shape of signaling unit head | Round |
| Electromagnetic compatibility | Electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2 Electromagnetic emission class B conforming to IEC 55011 |
| Resistance to fast transients | 2 kV level 3 IEC 61000-4-4 |
| Sale per indivisible quantity | 1 |
| Disturbance radiated (conducted) | Class B EN 50022 |
| Setting accuracy of time delay | +/- 10 % of full scale 77 °F (25 °C) IEC 61812-1 |
| Immunity to radioelectric fields | 10 V level 3 IEC 61000-4-6 |
| Ambient air temperature for storage | -4...176 °F (-20...80 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80 MHz...1 GHz level 3 IEC 61000-4-3 2.7 V/m (3 V/m) 1.4...2 GHz level 2 IEC 61000-4-3 0.9 V/m (1 V/m) 2...2.7 GHz level 1 IEC 61000-4-3 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
