Schneider Electric XB6EDW3B2P
MPNXB6EDW3B2P
Obsolete

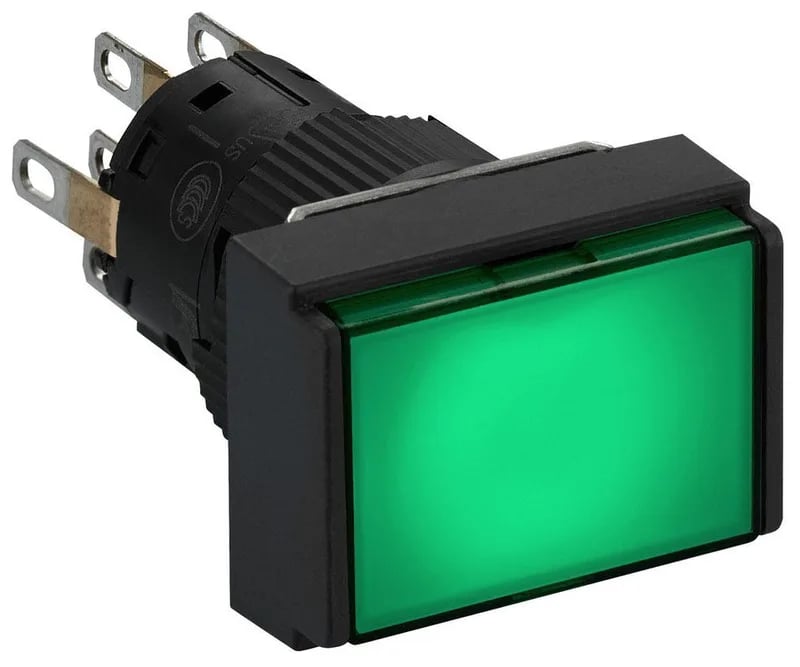

Square D XB6EDW3B2P 24V Pushbutton|Square D XB6EDW3B2P 24V Pushbutton
$9.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Signalling type | Steady |
| Range of product | Harmony XB6E |
| Type of operator | spring return |
| Product or component type | Illuminated monolithic push-button |
| Contacts type and composition | 2 C/O |
| Supply voltage | 24 V DC polarised |
| Current consumption | 10 mA |
| Short-circuit protection | 2 A cartridge fuse gG |
| [Ie] rated operational current | 1.5 A 120 V, AC-12 IEC 60947-5-1 1 A 240 V, AC-12 IEC 60947-5-1 1 A 24 V, DC-12 IEC 60947-5-1 0.7 A 24 V, DC-13 IEC 60947-5-1 0.2 A 125 V, DC-12 IEC 60947-5-1 0.15 A 125 V, DC-13 IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 3 A fast connector socket) 5 A |
| IP degree of protection | IP65 IEC 60529 |
| Mounting diameter | 0.6 in (16 mm) |
All specifications
| Parameter | Value |
|---|---|
| Connections - terminals | Insulated faston 2.8 x 0.5 mm Solder terminal Fast connector socket |
| Shock resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 1 mm (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| Bezel material | Plastic |
| Contacts material | Gold-flashed silver |
| Electrical durability | 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C |
| Mechanical durability | 1000000 cycles |
| Standards | IEC 60947-1 CSA C22.2 No 14 JIS C 852 UL 508 JIS C 4520 IEC 60947-5-1 |
| Marking | CE |
| Category | US10CS222459 |
| Light source | Integral LED |
| Service life | 30000 h |
| Operator profile | Green flush |
| Contact operation | Snap action |
| Device short name | XB6E |
| Contact resistance | 50 mOhm 1/6 V |
| Operating position | Any position |
| Shape of signaling unit head | Rectangular |
| Sale per indivisible quantity | 5 |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) |
MPN
XB6EDW3B2P
