Schneider Electric XKBZ994
MPNXKBZ994
Obsolete

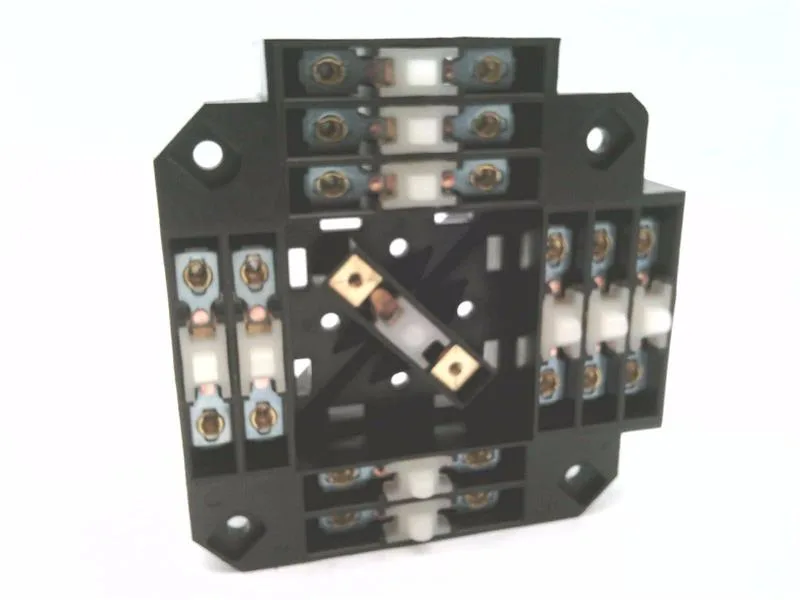

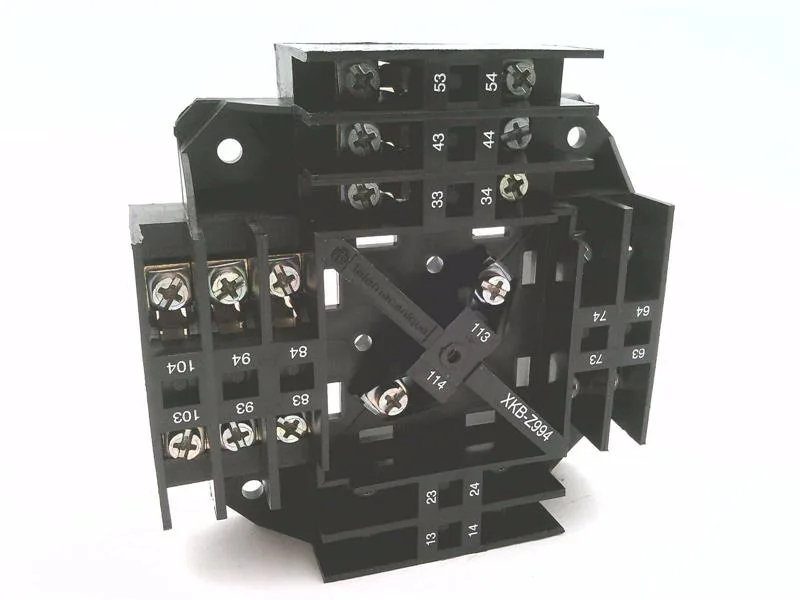

XKBZ994 - WITH DEAD MANS HDL OR WITH BUILT-IN PUSHBUTTON HDL by SCHNEIDER ELECTRIC
$317.50Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Controllers separate parts |
| Contacts type and composition | 1 NO 2 NC 8 NO |
| Accessory (Separate part type) | Contacts block |
| Voltage | 500 V AC/DC IEC 158-1 500 V AC/DC NF C 20-040 500 V AC/DC VDE 0110 |
| Short-circuit protection | 10 A cartridge fuse gG IEC 337-1B 10 A cartridge fuse gG VDE 0660 part 2 |
| [Ith] conventional free air thermal current | 10 A IEC 337-1 10 A NF C 63-140 10 A VDE 0660 10 A CSA C22.2 No 14 |
| Enclosure (cubicle description) | Monobloc |
| Electrical connection | Screw clamp terminal 1 x 0.5...1 x 1.5 mm² Screw clamp terminal 1 x 0.5...1 x 2.5 mm² |
| Maximum resistance across terminals | 25 mOhm 1 A NF C 93-050 |
| Electrical durability | 1000000 cycles DC inductive 120 V 75 IEC 337-1 DC-11 60 cyc/mn 0.5 1000000 cycles DC inductive 24 V 90 IEC 337-1 DC-11 60 cyc/mn 0.5 1000000 cycles DC inductive 48 V 90 IEC 337-1 DC-11 60 cyc/mn 0.5 |
| Standards | CENELEC EN 50013 |
| Category | US1000I22474 |
| Positive opening | With |
| Contact operation | Double-break Slow-break |
| Product specific application | Light hoisting applications |
| Accessory (separate part category) | Control accessory |
| Contact block per direction [control circuit] | 1 zero (center) position 2 zero per movement 4 per movement |
MPN
XKBZ994
