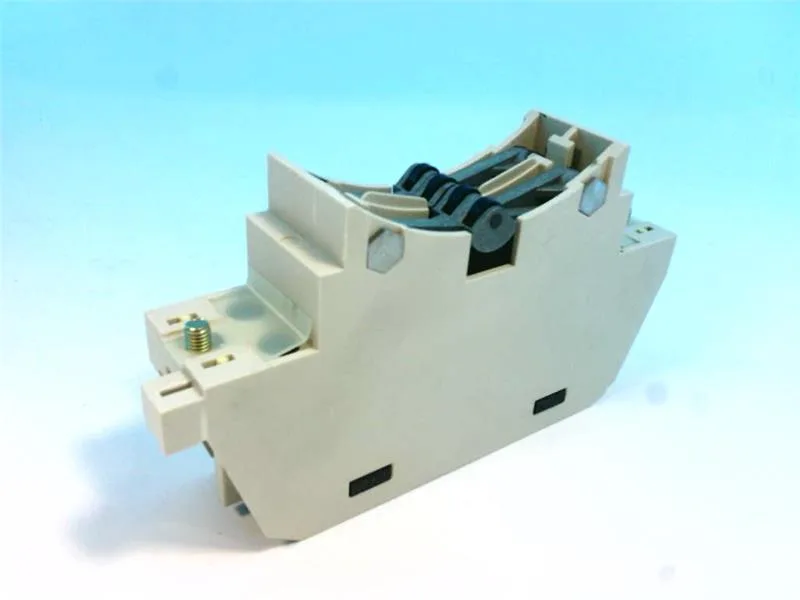

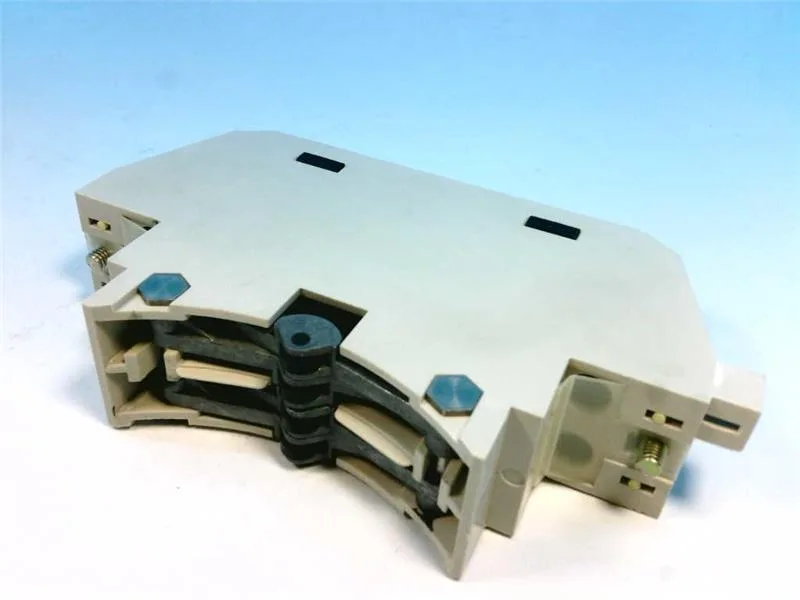

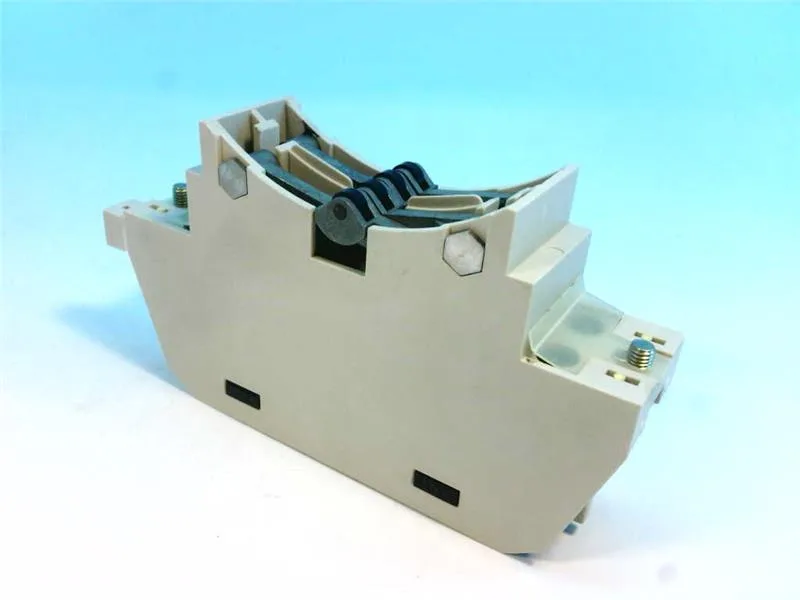

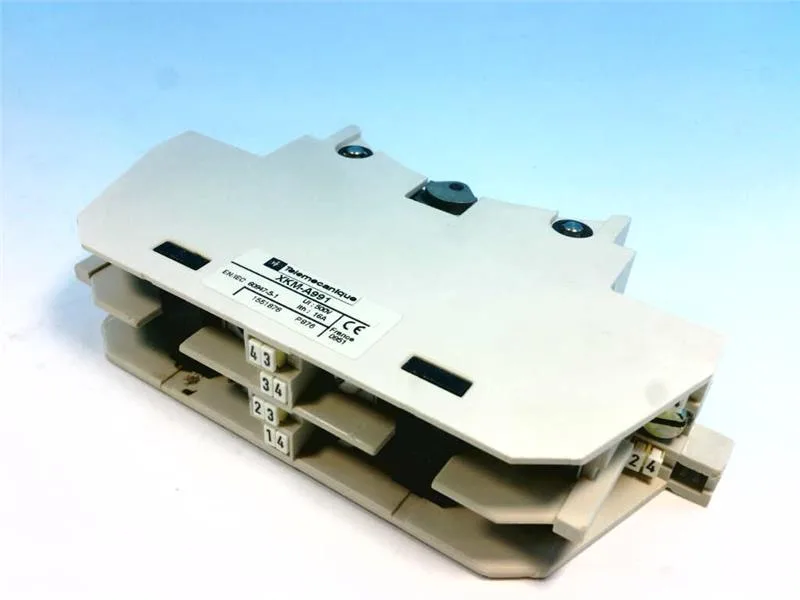

Schneider Electric XKMA991
MPNXKMA991
Obsolete
JOYSTICK CONTROLLER +OPTIONS|JOYSTICK CONTROLLER +OPTIONS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Contact blow-out type | Standard |
| Product or component type | Controllers separate parts |
| Accessory (Separate part type) | Contact block |
| Voltage | 500 V AC/DC IEC 158-1 500 V AC/DC NF C 20-040 500 V AC/DC VDE 0110 600 V CSA C22.2 No 14 |
| Short-circuit protection | 20 A cartridge fuse gG IEC 337-1B 20 A cartridge fuse gG VDE 0660 part 2 |
| [Ith] conventional free air thermal current | 20 A IEC 337-1 20 A NF C 63-140 20 A VDE 0660 |
| Number of contacts | 4 |
| Electrical connection | Screw clamp terminal 1 x 1.5...2 x 2.5 mm² |
| Maximum resistance across terminals | 25 MOhm 1 A NF C 93-050 |
| Electrical durability | 3000000 cycles DC inductive 120 V 75 IEC 337-1 DC-11 60 cyc/mn 0.5 3000000 cycles DC inductive 24 V 70 IEC 337-1 DC-11 60 cyc/mn 0.5 3000000 cycles DC inductive 48 V 75 IEC 337-1 DC-11 60 cyc/mn 0.5 |
| Standards | CENELEC EN 50013 |
| Category | US1000I22474 |
| Positive opening | With |
| Contact operation | Slow-break Double-break |
| Product specific application | Heavy hoisting applications |
| Accessory (separate part category) | Control accessory |
MPN
XKMA991
