Schneider Electric XPSDME1132P
MPNXPSDME1132P
Obsolete

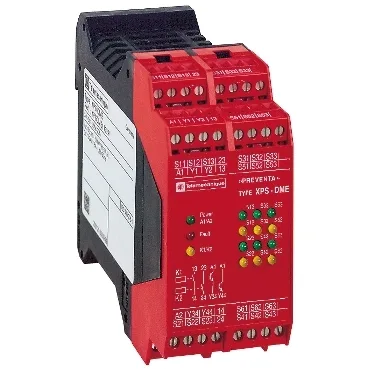

module XPSDM - 6 coded magnetic switch - 24 V DC
$692.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Output signal | Relay, 2 NO circuit(s), volt-free |
| Range of product | Preventa Safety automation |
| Input protection type | Internal, electronic |
| Product or component type | Preventa safety module |
| Minimum output voltage | 17 V for relay output |
| Supply voltage | 24 V DC - 20...20 % |
| Coil voltage | 28 V DC |
| Voltage | 300 V (pollution degree 2) conforming to IEC 60947-5-1 300 V (pollution degree 2) conforming to DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV overvoltage category III conforming to IEC 60947-5-1 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 |
| Breaking capacity | 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output |
| Current consumption | 8 mA at 28 V DC on power supply |
| Minimum output current | 10 mA for relay output |
All specifications
| Parameter | Value |
|---|---|
| Output thermal current | 6 A per relay for relay output |
| [Ith] conventional free air thermal current | 12 A |
| Power consumption in | 3.5 W |
| IP degree of protection | IP20 (terminals) conforming to EN/IEC 60529 IP40 (enclosure) conforming to EN/IEC 60529 |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end Captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel Captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end Captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible without cable end Captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, with bezel Captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel |
| Maximum response time on input open | 20 ms |
| Standards | EN/IEC 60947-5-1 EN 1088/ISO 14119 EN/IEC 60204-1 |
| Safety level | Can reach PL e/category 4 conforming to EN/ISO 13849-1 Can reach SILCL 3 conforming to EN/IEC 62061 |
| Local signalling | 15 LEDs |
| Function of module | Coded magnetic switch monitoring |
| Safety module name | XPSDME |
| Associated fuse rating | 4 A gG for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 6 A fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Maximum line resistance | 100 Ohm |
| Safety reliability data | DC > 99 % conforming to EN/ISO 13849-1 MTTFd = 82.4 years conforming to EN/ISO 13849-1 PFHd = 3.97E-9 1/h conforming to EN/IEC 62061 |
| Safety module application | Monitoring 6 coded magnetic switches |
| Number of additional circuits | 2 solid state outputs |
| Ambient air temperature for storage | -25...85 °C |
| Synchronisation time between inputs | < 0.5 s |
| Ambient air temperature for operation | -10...55 °C |
MPN
XPSDME1132P
