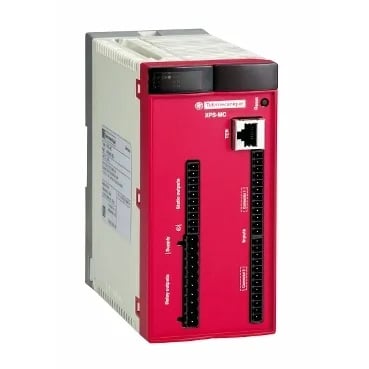

Schneider Electric XPSMC16ZP
MPNXPSMC16ZP
Obsolete
safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Output signal | 2 relays, 2 NO contacts (4 NO total) Solid state, 6, volt-free |
| Type of start | Configurable |
| Range of product | Preventa Safety automation |
| Input protection type | External fuse 16 A |
| Product or component type | Configurable safety controller |
| Minimum output voltage | 17 V relay output |
| Supply voltage | 24 V DC - 20...20 % |
| Coil voltage | 28.8 V |
| Voltage | 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Uimp] rated impulse withstand voltage | 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1 |
| Breaking capacity | 2 A 24 V static output circuit 1.5 A 24 V DC-13)50 ms relay output |
| Minimum output current | 10 mA relay output |
All specifications
| Parameter | Value |
|---|---|
| Output thermal current | 4 A for both outputs simultaneously 6 A for 1 output and 2 A for the other relay output |
| [Ith] conventional free air thermal current | 16 A relay output 6.5 A static output circuit |
| Power consumption in | 12 W |
| I/O channels | 16 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Supported modbus function | 01 8-bit output data/32-bit input data 02 32-bit input data/8-bit output data 03 information and errors |
| Communication port protocol | Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps Profibus 1 SUB-D 9-pin female, serial link 12 Mbps |
| Mounting support | Mounting plate |
| Response time | Configurable : 20 ms or 30 ms with software XPSMCWIN |
| Depth | 6.02 in (153 mm) |
| Width | 2.9 in (74 mm) |
| Height | 6.0 in (151.5 mm) |
| Standards | EN 1760-1/ISO 13856-1 EN 574/ISO 13851 IEC 60947-5-1 IEC 61508 IEC 60204-1 EN 954-1/EN/ISO 13849-1 IEC 61496-1 |
| Parity | Even Modbus No Modbus Odd Modbus |
| Category | US1SAF222477 |
| Data format | 1 start bit/8 data bits 1 stop bit even or odd 2 stop bits without parity RTU (Remote Terminal Unit) mode |
| Safety level | Can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 Can reach SIL 3 IEC 61508 |
| Exchange size | 14 words |
| Local signalling | 32 LEDs |
| Method of access | Slave |
| Function of module | Emergency stop monitoring, with or without time delay, 1 or 2-channel wiring Enabling switch monitoring, 2 or 3 contacts Foot switch monitoring Guard monitoring with 1 or 2 limit switches Magnetic switch monitoring category 4 EN/IEC 61496 Muting function of light curtains Position selector Safety mat monitoring Safety time delays Shaft/chain breaking monitor Zero speed detection Light curtain monitoring category 4 IEC 61496 Two-hand control category 3 EN 574/ISO 13851 |
| Safety module name | XPSMC |
| Number of addresses | 1...125 Profibus 1...247 Modbus |
| Safety use category | Category 4 maximum EN 954-1/EN/ISO 13849-1 PLE maximum ISO 13849-1 SIL 3 maximum IEC 61508 |
| Associated fuse rating | 16 A gL power supply 4 A gL relay output 6 A fast blow relay output |
| Maximum line resistance | 100 Ohm <6561.7 ft (2000 m) |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Synchronisation time between inputs | Depending on configuration selected |
| Ambient air temperature for operation | 14...131 °F (-10...55 °C) |
MPN
XPSMC16ZP
