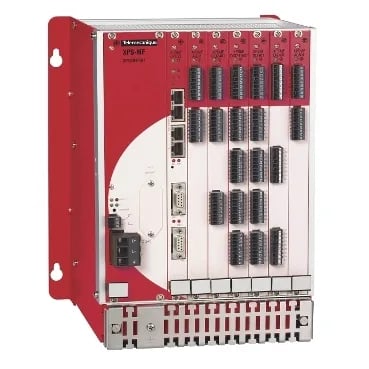

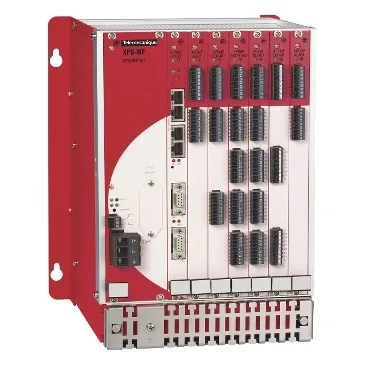

Schneider Electric XPSMFGEH01
MPNXPSMFGEH01
Obsolete
Prevent a safety PLC housing - 257 x 310 x 239 mm - metal alloy - IP20
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cooling | 2 fans |
| Range of product | Preventa Safety automation |
| Product or component type | Preventa safety PLC housing |
| IP degree of protection | IP20 with covering plate on unused in rack I/O card slots) |
| Device mounting | 4 x Ø 14 mm elongated holes |
| Mounting support | Vertical support |
| Pollution degree | 2 |
| Shock resistance | 15 gn 11 ms 2 cycles per axis)EN 61131-2 |
| Relative humidity | 95 % supply not connected |
| Operating altitude | < 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 10...150 Hz) - 10 cycles per axis - EN 61131-2 |
| Electrical shock protection class | Class II conforming to IEC 61131-2 |
All specifications
| Parameter | Value |
|---|---|
| Depth | 9.4 in (239 mm) |
| Width | 10.1 in (257 mm) |
| Height | 12.2 in (310 mm) |
| Material | Metal alloy |
| Standards | EN 50156 pending IEC 61131 DIN V 0801 DIN V 19250 |
| Category | 22478 - XPS SAFETY PLC |
| Associated module | XPSMFAI801 I/O card) XPSMFAO801 I/O card) XPSMFCIO2401 I/O card) XPSMFCPU22 CPU) XPSMFDI2401 I/O card) XPSMFDI3201 I/O card) XPSMFDIO241601 I/O card) XPSMFDO801 I/O card) XPSMFPS01 24 V power supply module) |
| Safety module name | XPS MF60 |
| Safety use category | Category 4 maximum EN 954-1 Performance level e EN/ISO 13849-1 SIL 3 EN/IEC 61508 |
| Electromagnetic compatibility | EN/IEC 61131-2 |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) EN/IEC 61131-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 26...1000 MHz), amplitude modulation 80 % EN/IEC 61000-4-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact EN/IEC 61000-4-2 8 kV on air EN/IEC 61000-4-2 |
MPN
XPSMFGEH01
