Schneider Electric XPSUDN33AC
MPNXPSUDN33AC
Active

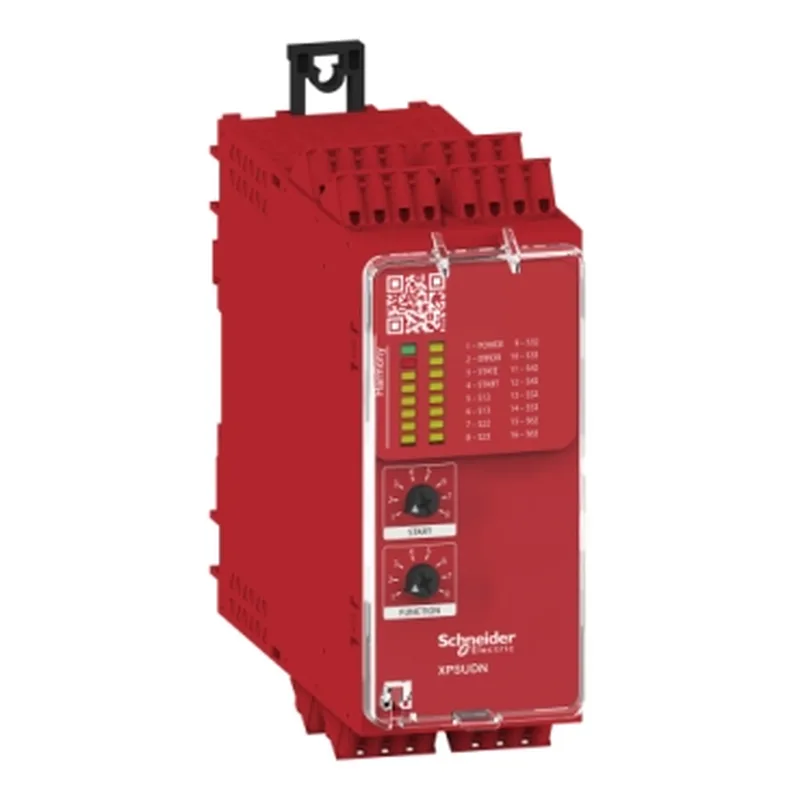

Safety module, Harmony Safety Automation, Cat.4, features 6*XPSUAF, 48-240v AC/DC, spring
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type of start | Automatic/manual/monitored |
| Range of product | Harmony Safety Automation |
| Input (output type) | Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related |
| Input protection type | Internal, electronic |
| Electrical circuit type | NC pair PNP pair Antivalent pair OSSD pair |
| Product or component type | Safety module |
| Minimum output voltage | 12 V relay output |
| Supply voltage | 48...240 V AC/DC - 10...10 % |
| Voltage | 250 V 2)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV II IEC 60947-1 |
| Minimum output current | 10 mA relay output |
| [Ie] rated operational current | 5 A AC-1 for normally open relay contact 3 A AC-15 for normally open relay contact 5 A DC-1 for normally open relay contact 3 A DC-13 for normally open relay contact 3 A AC-1 for normally closed relay contact 1 A AC-15 for normally closed relay contact 3 A DC-1 for normally closed relay contact 1 A DC-13 for normally closed relay contact |
All specifications
| Parameter | Value |
|---|---|
| [Ith] conventional free air thermal current | 16 A |
| Power consumption in | 25 VA 240 V AC 50/60 Hz |
| IP degree of protection | IP20 terminals)IEC 60947-1 IP40 housing)IEC 60947-1 IP54 mounting area)IEC 60947-1 |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Removable spring terminal block, 0.2...2.5 mm² solid or flexible Removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor Removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor Removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel Removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel |
| Maximum wire resistance | 500 Ohm |
| Maximum response time on input open | 20 ms |
| Relative humidity | 5...95 % non-condensing |
| Depth | 4.7 in (120 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.9 in (100 mm) |
| Standards | IEC 60947-5-1 IEC 61508-1 functional safety standard IEC 61508-2 functional safety standard IEC 61508-3 functional safety standard IEC 61508-4 functional safety standard IEC 61508-5 functional safety standard IEC 61508-6 functional safety standard IEC 61508-7 functional safety standard ISO 13849-1 functional safety standard IEC 62061 functional safety standard |
| Category | US1SAF222477 |
| Safety level | Can reach PL e/category 4 for normally open relay contact ISO 13849-1 Can reach SILCL 3 for normally open relay contact IEC 62061 Can reach SIL 3 for normally open relay contact IEC 61508 Can reach PL c/category 1 for normally closed relay contact ISO 13849-1 Can reach SILCL 1 for normally closed relay contact IEC 62061 Can reach SIL 1 for normally closed relay contact IEC 61508 |
| Safety inputs | 6 safety input 24 V DC 5 mA |
| Safety outputs | 3 NO + 1 NC |
| Control outputs | 7 on/off configurable pulsed output |
| Local signalling | LED (green) for power ON LED (red) for error LED (yellow) for start LED (yellow) for safety status LED (yellow) for safety input S12 LED (yellow) for safety input S13 LED (yellow) for safety input S22 LED (yellow) for safety input S23 LED (yellow) for safety input S32 LED (yellow) for safety input S33 LED (yellow) for safety input S42 LED (yellow) for safety input S43 LED (yellow) for safety input S52 LED (yellow) for safety input S53 LED (yellow) for safety input S62 LED (yellow) for safety input S73 |
| Function of module | Emergency stop button with 2 NC contacts Guard monitoring with 1 or 2 limit switches Monitoring 2 PNP sensors Magnetic switch monitoring Light curtain monitoring RFID switch Monitoring of electro-sensitive protection equipment (ESPE) Proximity sensor monitoring |
| Safety module name | XPSUDN |
| Input compatibility | Normally closed circuit ISO 14119 XC limit switch ISO 14119 Mechanical contact ISO 14119 Normally closed circuit ISO 13850 Antivalent pair ISO 14119 OSSD pair IEC 61496-1-2 3-wire proximity sensors PNP |
| Associated fuse rating | 10 A gG NO relay output circuit IEC 60947-1 4 A gG NC relay output circuit IEC 60947-1 |
| Safety reliability data | MTTFd > 30 years ISO 13849-1 Dcavg >= 99 % ISO 13849-1 PFHd = 1.36E-09 ISO 13849-1 HFT = 1 IEC 62061 PFHd = 1.36E-09 IEC 62061 SFF > 99% IEC 62061 HFT = 1 IEC 61508-1 PFHd = 1.36E-09 IEC 61508-1 SFF > 99% IEC 61508-1 Type = B IEC 61508-1 |
| Safety module application | Monitoring antivalent contacts For emergency stop, guard and light curtain monitoring |
| Ambient air temperature for storage | -13...185 °F (-25...85 °C) |
| Synchronisation time between inputs | 0.5 s 2 s 2.2 s 4 s |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) at 24 V AC -13...131 °F (-25...55 °C) at 24 V DC |
MPN
XPSUDN33AC
