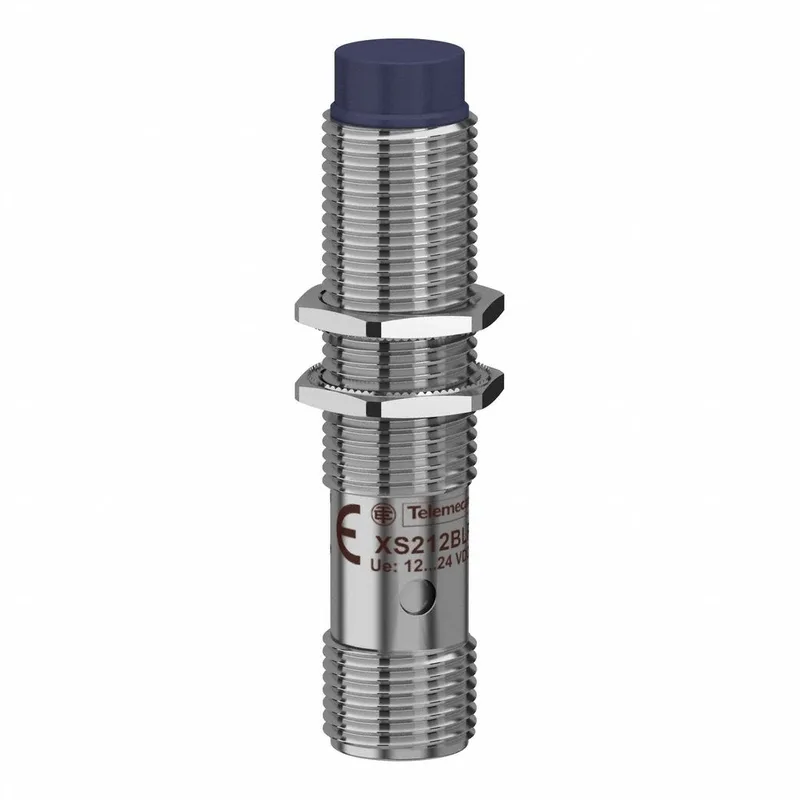

The Telemecanique XS212BLPAM12 is an M12 inductive proximity sensor from the XS2 series, delivering a 4 mm sensing distance with unshielded PNP normally open output. That means it detects ferrous targets at that range without needing a flush mount – common for position sensing on machine slides or conveyors. Rated for 12-24 V DC supply and 200 mA load current, it directly drives PLC inputs or small relays. The brass body with nickel plating handles vibration and corrosion; IP67 and NEMA 4X let it survive washdown and outdoor exposure.
XS212BLPAM12 Telemecanique M12 Inductive Prox, PNP, 4mm
MPNXS212BLPAM12
Telemecanique XS2 series, M12 threaded cylindrical inductive proximity sensor, 4 mm unshielded, PNP NO output, 12-24 V DC, IP67, NEMA 4X.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS2 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 4 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Unshielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-24V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-24V DC |
| Number of wires | 3 |
| Electrical connection | M12 |
| Electrical installation type | Direct Connector |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | PNP |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | PNP |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 55 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
Product details
Frequently asked questions
What series does XS212BLPAM12 belong to?
It is part of the XS2 series of inductive cylindrical proximity sensors from Telemecanique.
What is the IP rating of XS212BLPAM12?
IP67 and NEMA 4X – suitable for washdown and outdoor environments.
What compliance documentation does this sensor carry?
CE, CSA, RoHS, and UL Listed – covering safety and environmental standards for most industrial markets.
MPN
XS212BLPAM12
