The XS218BLNBL2: M18 threaded brass body, nickel plated. Unshielded sensing face detects ferrous targets up to 8 mm. NPN output, normally closed, rated 200 mA continuous load. Supply 12-24 VDC with built-in overload, reverse polarity, and short circuit protection. IP67 and NEMA 4X enclosure – rated for washdown and wet environments. 2 m prewired cable, three-wire NPN, bare wire termination. Operating temperature -13°F to 158°F.

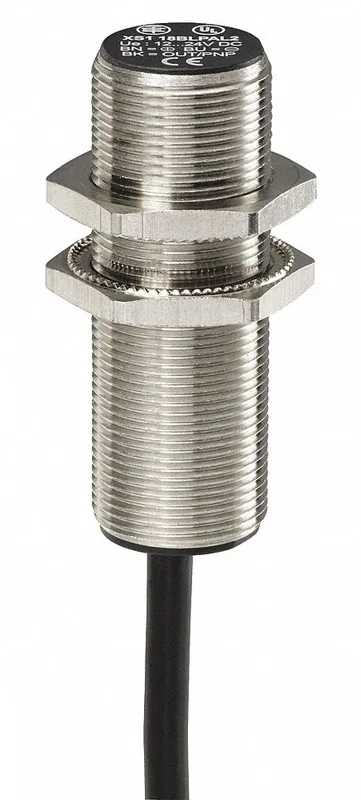

Telemecanique XS218BLNBL2 Inductive Sensor, M18, 8mm, NPN NC
MPNXS218BLNBL2
Telemecanique Sensors XS218BLNBL2 inductive cylindrical proximity sensor, M18 threaded, unshielded, NPN normally closed, 8 mm sensing distance, 12-24 VDC, 200 mA, IP67, 2 m cable.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS2 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 8 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Unshielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-24V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-24V DC |
| Number of wires | 3 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NC |
| Output circuit type | NPN |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | NPN |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 53 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
Product details
Frequently asked questions
What series does XS218BLNBL2 belong to?
It is part of the Telemecanique Sensors XS2 series.
What protection features are built in?
Overload protection, reverse polarity protection, and short circuit protection are integrated.
What compliance documentation is available?
CE, CSA, RoHS, and UL listed certifications are on file.
