Schneider Electric XS218SAMAU20 — Proximity Sensors

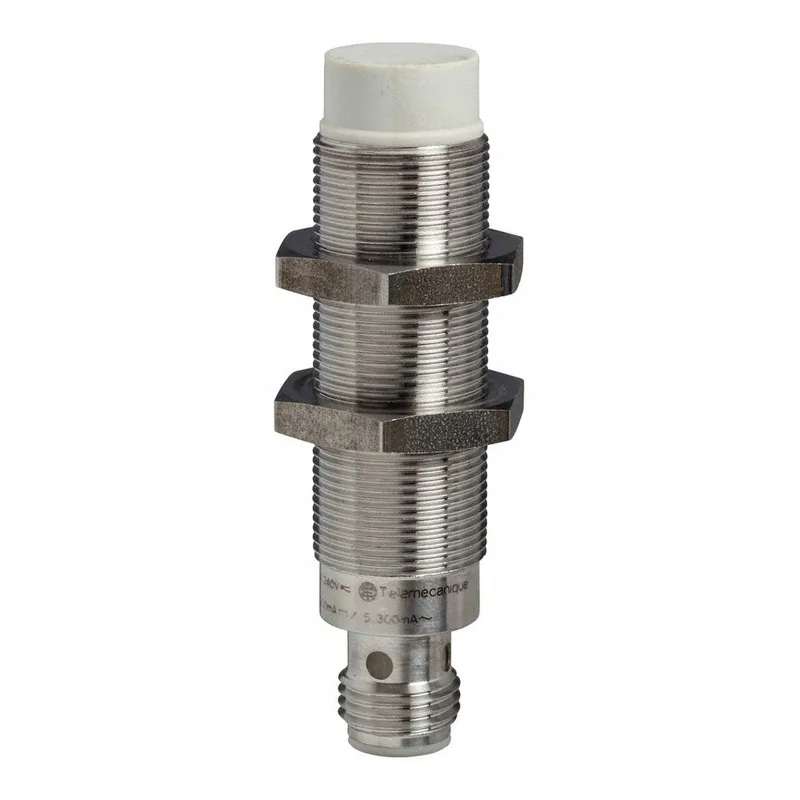

Telemecanique XS218SAMAU20 Inductive Proximity Sensor, M18,

MPNXS218SAMAU20

Telemecanique Sensors XS2 series, XS218SAMAU20 M18 threaded inductive proximity sensor, unshielded, NO, 2-wire AC/DC, 24-240 VAC/DC, 12 mm sensing distance, IP67/IP69K, stainless steel 316L.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS218SAMAU20 — Identification
ParameterValue
SeriesXS2
XS218SAMAU20 — Sensing
ParameterValue
Sensing distance, max. (alt.)12 mm
Sensing methodInductive
Sensing-face shieldingUnshielded
XS218SAMAU20 — Electrical
ParameterValue
Supply voltage24-240V AC ; 24-240V DC
AC supply voltage rating24-240V AC
DC supply voltage rating24-240V DC
Number of wires2
Electrical connection1/2 in Connector
Electrical installation typeDirect Connector
XS218SAMAU20 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeAC/DC-Type
Includes indicator lightsIndicator Lights Included
Output circuit2-Wire AC/DC
XS218SAMAU20 — Mechanical
ParameterValue
Body styleCylindrical
Overall height72 mm
Body materialStainless Steel
XS218SAMAU20 — Environmental
ParameterValue
Operating temperature, max. (alt.)185 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS218SAMAU20 — Approvals
ParameterValue
Standards / certificationsCCC; CE; CSA; RoHS; UL Listed

Product details

The Telemecanique Sensors XS218SAMAU20 is a M18 threaded inductive proximity sensor from the XS2 series. Unshielded face, normally-open output, 2-wire AC/DC circuit handling 24-240 VAC or 24-240 VDC. That wide voltage range means it works on 24V PLC inputs or 120V relay logic without a different part number — one SKU for both.

Rated 12 mm sensing distance (unshielded), so you get longer range than a shielded variant but need about a 3× sensor-diameter gap to surrounding metal. Load current max 300 mA — enough for a small contactor or PLC input, but not for a direct motor coil. IP67 and IP69K seals handle washdown; the stainless steel 316L body and nickel plating resist corrosion in food or marine environments.

Frequently asked questions

What series does the XS218SAMAU20 belong to?

The XS218SAMAU20 is part of the Telemecanique Sensors XS2 series of inductive cylindrical proximity sensors.

What features does the XS218SAMAU20 include?

It includes a yellow LED indicator for output status, an IP67/IP69K rating, and a stainless steel 316L body with nickel plating.

What compliance certifications does the XS218SAMAU20 carry?

It is listed with CCC, CE, CSA, RoHS, and UL certifications.

MPN
XS218SAMAU20
