Schneider Electric XS230SAMAU20 — Proximity Sensors

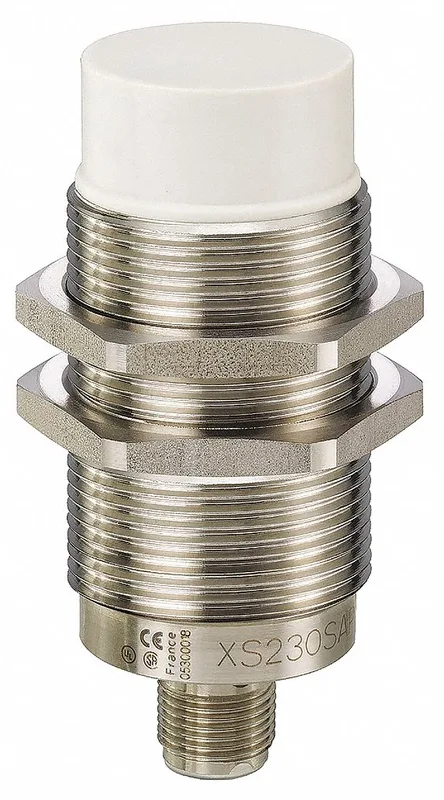

Telemecanique XS230SAMAU20 Inductive Proximity Sensor, M30,

MPNXS230SAMAU20

Telemecanique Sensors XS2 Series Inductive Proximity Sensor, XS230SAMAU20, M30 Threaded, 40 mm, Unshielded, NO, 2-Wire AC/DC 24-240 V, IP67/IP69K, 316L Stainless Steel.

Schneider Electric XS230SAMAU20 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

XS230SAMAU20 — Identification
ParameterValue
SeriesXS2
XS230SAMAU20 — Sensing
ParameterValue
Sensing distance, max. (alt.)40 mm
Sensing methodInductive
Sensing-face shieldingUnshielded
XS230SAMAU20 — Electrical
ParameterValue
Supply voltage24-240V AC ; 24-240V DC
AC supply voltage rating24-240V AC
DC supply voltage rating24-240V DC
Number of wires2
Electrical connection1/2 in Connector
Electrical installation typeDirect Connector
XS230SAMAU20 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeAC/DC-Type
Includes indicator lightsIndicator Lights Included
Output circuit2-Wire AC/DC
XS230SAMAU20 — Mechanical
ParameterValue
Body styleCylindrical
Overall height74 mm
Body materialStainless Steel
XS230SAMAU20 — Environmental
ParameterValue
Operating temperature, max. (alt.)185 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS230SAMAU20 — Approvals
ParameterValue
Standards / certificationsCCC; CE; CSA; RoHS; UL Listed

Product details

What this XS230SAMAU20 brings to the panel

XS230SAMAU20 is a Series XS2 inductive proximity sensor: M30 threaded, 316L stainless, unshielded, NO output. Sensing range 15–40 mm, supply 24-240 V AC/DC, 2-wire, 300 mA load, IP67/IP69K, yellow LED.

Frequently asked questions

What series does this sensor belong to?

It is part of the XS2 series.

What compliance marks does XS230SAMAU20 carry?

It carries CCC, CE, CSA, RoHS, and UL Listed marks.

Does this sensor have an LED indicator?

Yes, it includes a yellow LED indicator.
