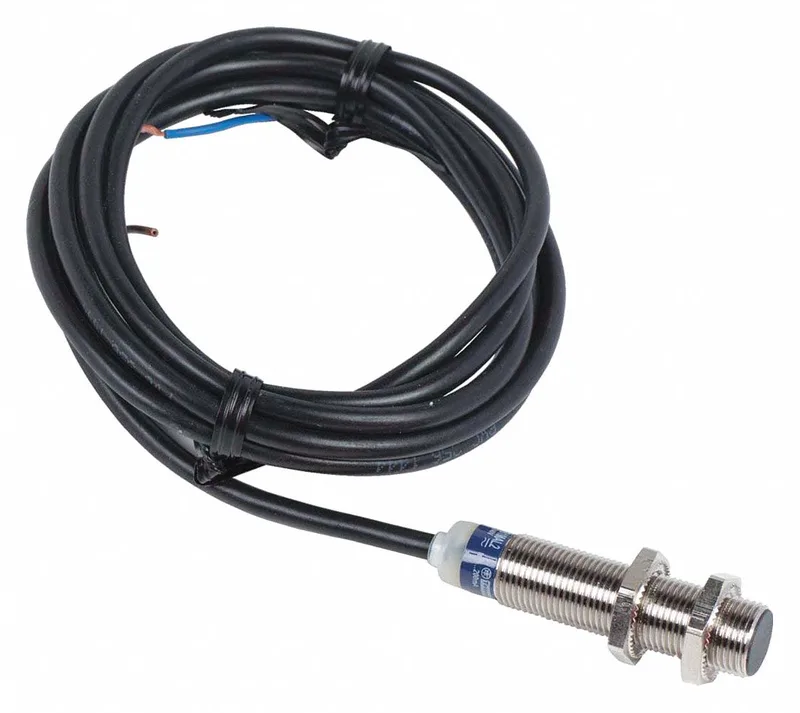

This XS512B1MAL2 is a shielded M12 inductive proximity sensor from the XS5 series, rated for 2 mm sensing distance on steel. It runs on a wide AC/DC supply, 24 to 240 V, and switches up to 200 mA through a normally-open 2-wire output. Body is nickel-plated brass with a 2-meter cable, IP68 and IP69K rated—so it handles washdowns and high-pressure spray without a fuss. The LED indicator gives you a quick visual on target presence. Current production, so no lifecycle worries.
TELEMECANIQUE SENSORS XS512B1MAL2 M12 Shielded Prox, 2mm, 24
MPNXS512B1MAL2
TELEMECANIQUE SENSORS XS5 series, XS512B1MAL2 M12 shielded cylindrical inductive proximity sensor, 2 mm sensing, 2-wire AC/DC, 24-240 V supply, 200 mA load, IP68/IP69K, nickel-plated brass, 2 m cable.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS5 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 2 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24-240V AC ; 24-240V DC |
| AC supply voltage rating | 24-240V AC |
| DC supply voltage rating | 24-240V DC |
| Number of wires | 2 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Output circuit type | AC/DC-Type |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | 2-Wire AC/DC |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 53 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP68; IP69K |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
Product details
Frequently asked questions
What is the series of this sensor?
It belongs to the XS5 series.
What protections does the XS512B1MAL2 include?
It includes overload protection, reverse polarity protection, and short circuit protection.
What compliance certifications does it have?
It is CE, CSA, RoHS, and UL Listed.
What is the maximum load current?
200 mA maximum load current.
MPN
XS512B1MAL2
