What's in the box — and what it does

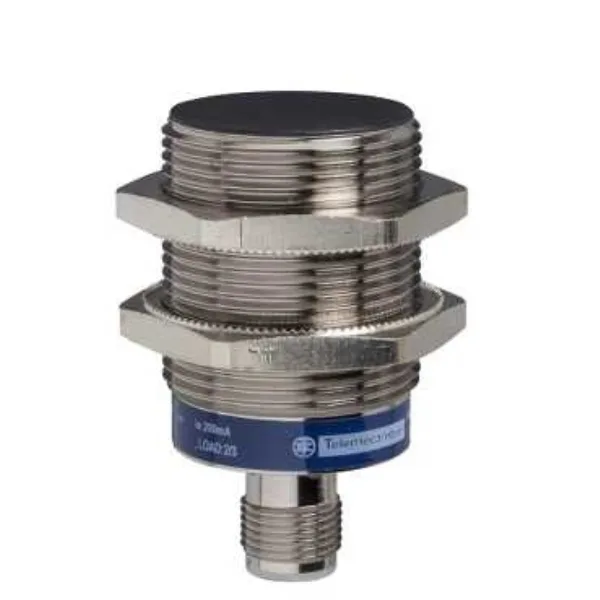

The XS530B1NAM12 is a brass, nickel-plated inductive proximity sensor from the XS5 series. It comes with a built-in M12 connector, indicator light, and a shielded sensing face. The kit is complete: no separate pigtail or bracket needed—just the sensor and its connector. Rated for 12–24 VDC, it draws a maximum load current of 200 mA through its NPN normally-open output. Three wires—brown, blue, black—match the standard M12 pinout for DC proximity sensors. Sensing distance is 10 mm, shielded, on an M30 threaded barrel. That makes it suitable for flush mounting in metal panels where you need to detect ferrous targets at close range without side interference. Enclosure ratings are IP67 and IP69K, plus NEMA 4X, so it handles washdown environments and high-pressure hose-downs. The brass body and nickel plating resist corrosion in wet or dusty conditions.
How it compares to the XS9E11RPBL01M12
The XS9E11RPBL01M12 is a rectangular plastic sensor with PNP normally-closed output, while this XS530B1NAM12 is cylindrical brass with NPN normally-open. Both run on 12–24 VDC, have 10 mm sensing distance, and use a 4-pin M12 remote connector with three wires. The output type and contact form are opposite, so they are not direct drop-ins without rewiring the load side. The rectangular XS9 has a higher switching frequency (800 Hz) vs. the XS530's unstated but typical lower limit for shielded cylindrical sensors, and it carries a 100 mA load vs. the 200 mA here. The XS530's IP69K rating surpasses the XS9's IP67, making it the better choice for extreme washdown zones.
Production status and supply posture
Complies with CE, CSA, RoHS, and UL Listing standards.
