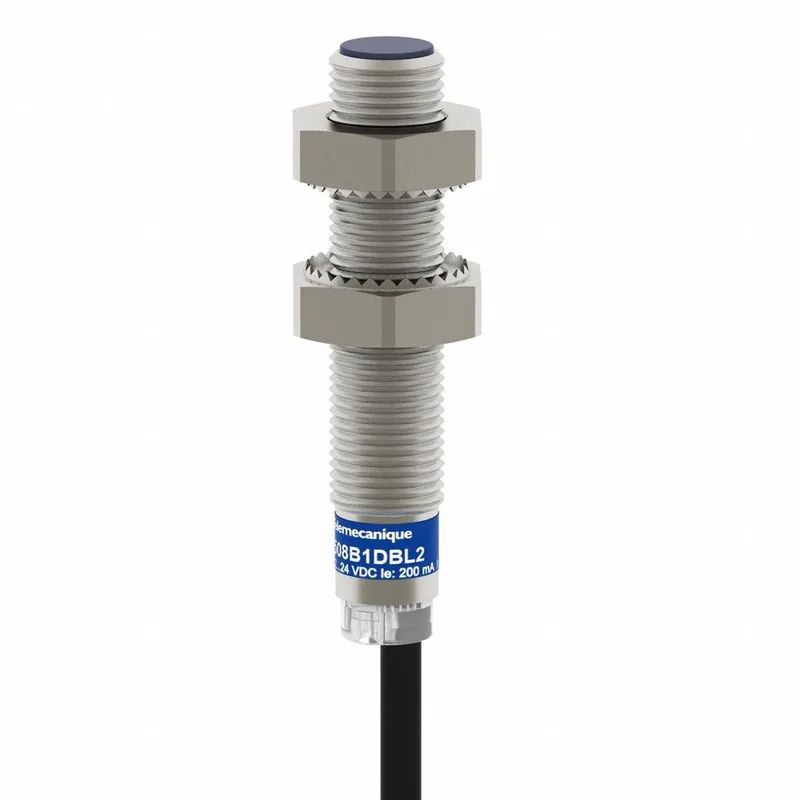

Telemecanique Sensors XS6 inductive proximity sensor, M8 shielded, NPN NC output, 3 mm sensing range, 12-48 VDC, IP67, 2m cable.
| Parameter | Value |
|---|---|
| Series | XS6 |
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 3 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
| Parameter | Value |
|---|---|
| Supply voltage | Not Rated ; 12-48V DC |
| AC supply voltage rating | Not Rated |
| DC supply voltage rating | 12-48V DC |
| Number of wires | 3 |
| Electrical connection | Bare Wire |
| Electrical installation type | Prewired Cable |
| Parameter | Value |
|---|---|
| Output circuit contact form | NC |
| Output circuit type | NPN |
| Includes indicator lights | Indicator Lights Included |
| Output circuit | NPN |
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 51 mm |
| Body material | Stainless Steel |
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67 |
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; RoHS; UL Listed |
The XS608B1NBL2: M8 shielded inductive proximity sensor from the XS6 Extended Range series. NPN normally-closed output, 3 mm sensing distance, 12-48 VDC supply. IP67, NEMA 4X rated, stainless steel 303 body. Current production part.
Current production lifecycle stage. Available via our sourcing network; request a quote for quantities.
The series is XS6.
IP67 and NEMA 4X enclosure ratings, stainless steel body, suitable for washdown or outdoor use.
12-48 VDC, no AC rating.
