Integrator note – output type, wiring, and environment

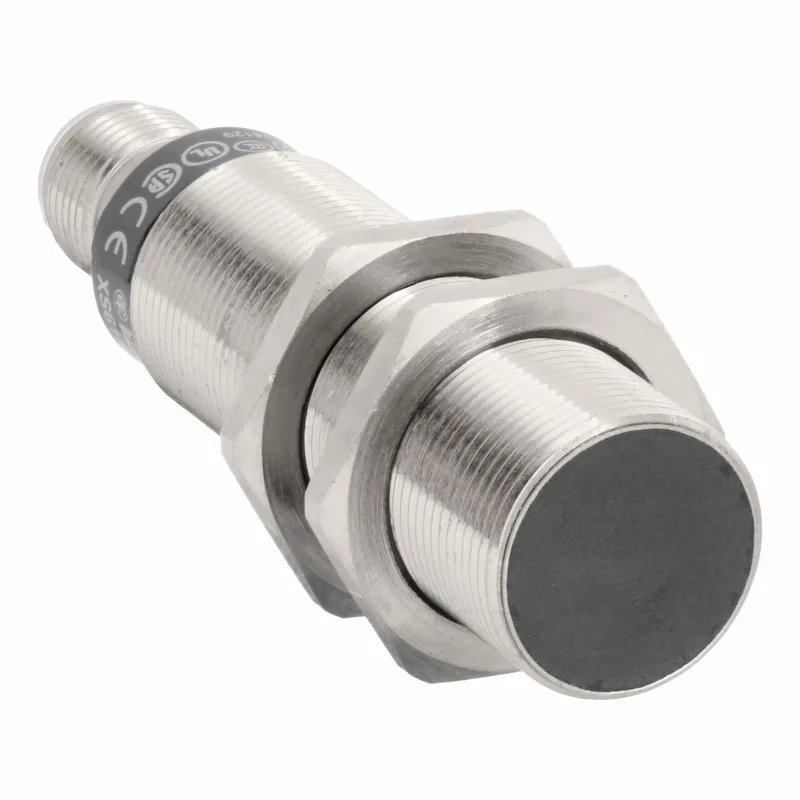

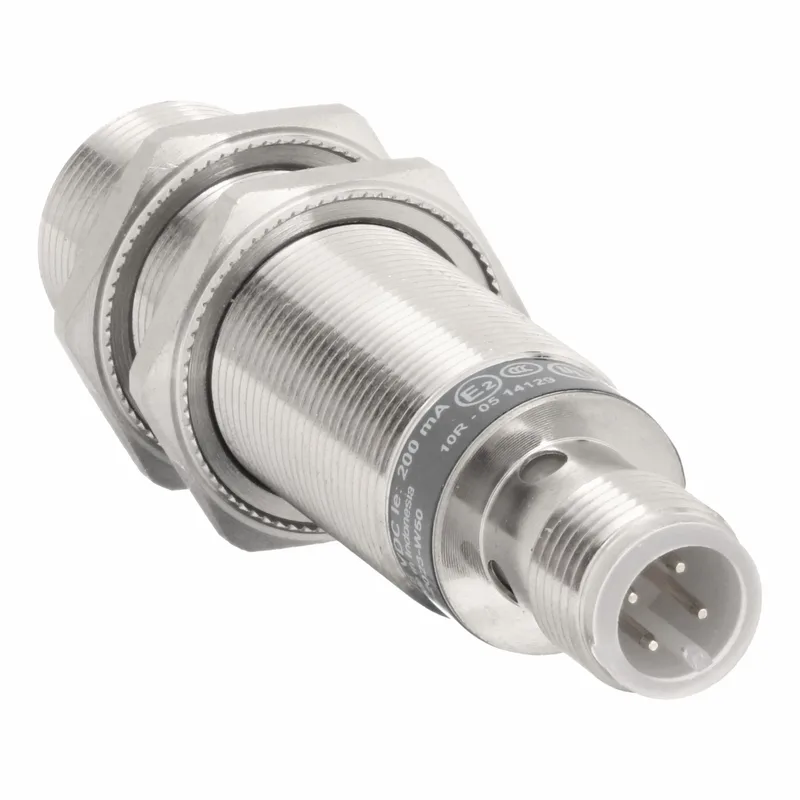

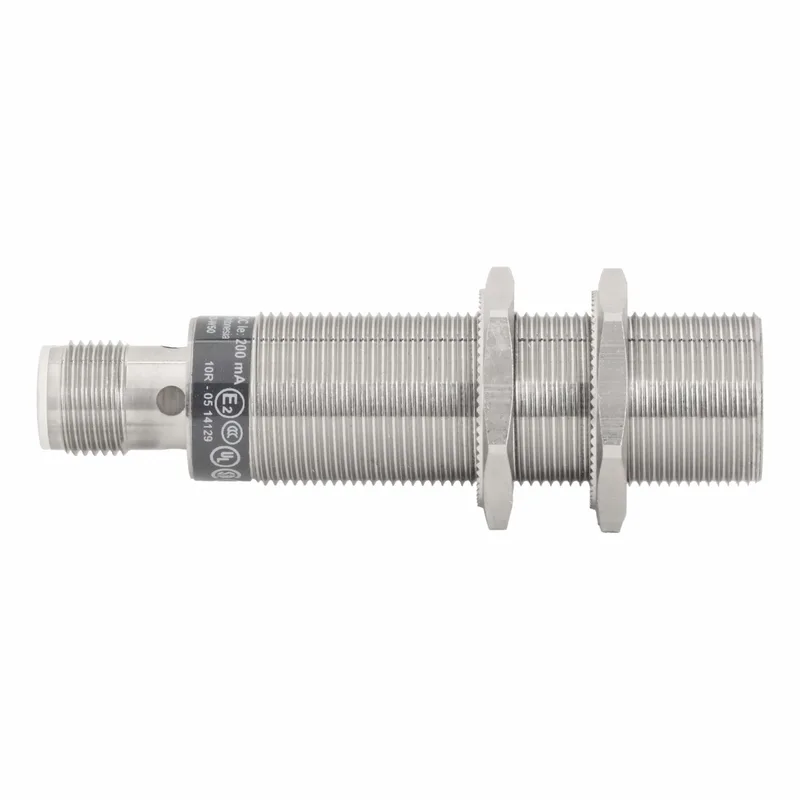

XS618B1NAM12 is a shielded M18 inductive proximity sensor from the XS6 series, outputting NPN normally-open (NO) at 200 mA max load. Supply is 12-48 VDC via a 4-pin M12 connector. The shielded face limits sensing range to 8 mm but allows flush mounting in metal without derating. The brass housing with nickel plating, combined with IP67 and IP69K ratings plus NEMA 4X, means it handles high-pressure washdown and corrosive environments. The integrated LED indicator confirms target presence without a test tool.
Lifecycle and compliance – sourcing posture
The lifecycle stage is current, so we can quote to your BOM line without concerns about imminent obsolescence. For cross-border or project documentation, the sensor carries CE, CSA, RoHS, and UL listing. Return claims: if the sensor arrives with the indicator dark and the target is properly aligned, the first check is the supply polarity and load wiring – most returns here trace to a miswired NPN sink.
