Schneider Electric XS618B1PBM12 — Proximity Sensors

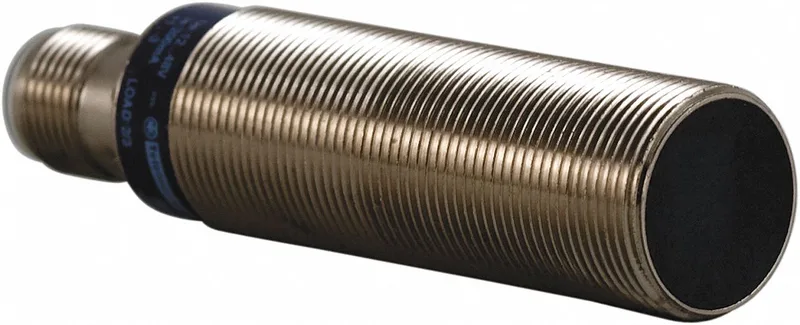

Telemecanique XS618B1PBM12 Inductive Prox, IP69K, PNP NC

MPNXS618B1PBM12

Telemecanique XS6 Extended Range, XS618B1PBM12, Inductive Cylindrical Proximity Sensor, Shielded, M18 Threaded, PNP NC, 8 mm Sensing Distance, IP67, IP69K, 12-48 VDC.

Schneider Electric XS618B1PBM12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS618B1PBM12 — Identification
ParameterValue
SeriesXS6
XS618B1PBM12 — Sensing
ParameterValue
Sensing distance, max. (alt.)8 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS618B1PBM12 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-48V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-48V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS618B1PBM12 — Output
ParameterValue
Output circuit contact formNC
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
XS618B1PBM12 — Mechanical
ParameterValue
Body styleCylindrical
Overall height74 mm
Body materialBrass
XS618B1PBM12 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67; IP69K
XS618B1PBM12 — Approvals
ParameterValue
Standards / certificationsCE; CSA; E2; RoHS; UL Listed

Product details

Telemecanique XS6 Extended Range, XS618B1PBM12, Inductive Cylindrical Proximity Sensor, Shielded, M18 Threaded, PNP NC, 8 mm Sensing Distance, IP67, IP69K, 12-48 VDC.

Frequently asked questions

What compliance documentation is available for XS618B1PBM12?

The sensor carries CE, CSA, RoHS, and UL Listing, so compliance documentation including UL recognition and RoHS declarations is standard from Telemecanique.
