The XS618B4MAU20 is a 24 mm shielded inductive proximity sensor from the XS6 series, rated IP67 and IP69K. The IP69K rating means it withstands high-temperature, high-pressure washdown cycles — a deciding factor for food and beverage lines where daily CIP with hot caustic is standard. It operates on 24-240V AC or DC, so one part number covers mixed control voltages. No separate DC supply needed if the panel runs on AC. Sensing distance is 15 mm, and the shielded face allows flush mounting in metal without derating. Output is a 2-wire normally open — simple, reliable for detecting metal targets. The nickel-plated brass body and 1/2 in threaded connector resist corrosion and mate with standard quick-disconnect cables. CE, CSA, and UL certification is confirmed, easing site acceptance.

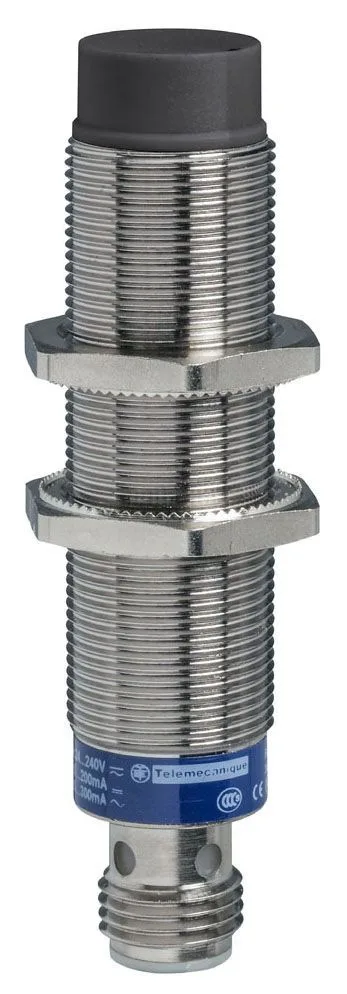

Telemecanique XS618B4MAU20, IP69K, 15mm
MPNXS618B4MAU20
Telemecanique XS6 series XS618B4MAU20 inductive proximity sensor, IP67/IP69K, shielded, 24 mm diameter, 15 mm sensing distance, 2-wire NO, 24-240V AC/DC.
$143.23 – $148.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | XS6 |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. (alt.) | 15 mm |
| Sensing method | Inductive |
| Sensing-face shielding | Shielded |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24-240V AC ; 24-240V DC |
| AC supply voltage rating | 24-240V AC |
| DC supply voltage rating | 24-240V DC |
| Number of wires | 2 |
| Electrical connection | 1/2 in Connector |
| Electrical installation type | Direct Connector |
Output
| Parameter | Value |
|---|---|
| Output circuit contact form | NO |
| Includes indicator lights | Indicator Lights Included |
Mechanical
| Parameter | Value |
|---|---|
| Body style | Cylindrical |
| Overall height | 72 mm |
| Body material | Brass |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. (alt.) | 158 °F |
| Operating temperature, min. (alt.) | -13 °F |
| IP rating | IP67; IP69K |
Approvals
| Parameter | Value |
|---|---|
| Standards / certifications | CE; CSA; UL Listed |
Product details
Frequently asked questions
What is the series and title of this part?
It belongs to the XS6 series and is listed under part number XS618B4MAU20.
What compliance documentation does this sensor carry?
It holds CE, CSA, and UL certifications.
