Schneider Electric XS7D1A1PAM12 — Proximity Sensors

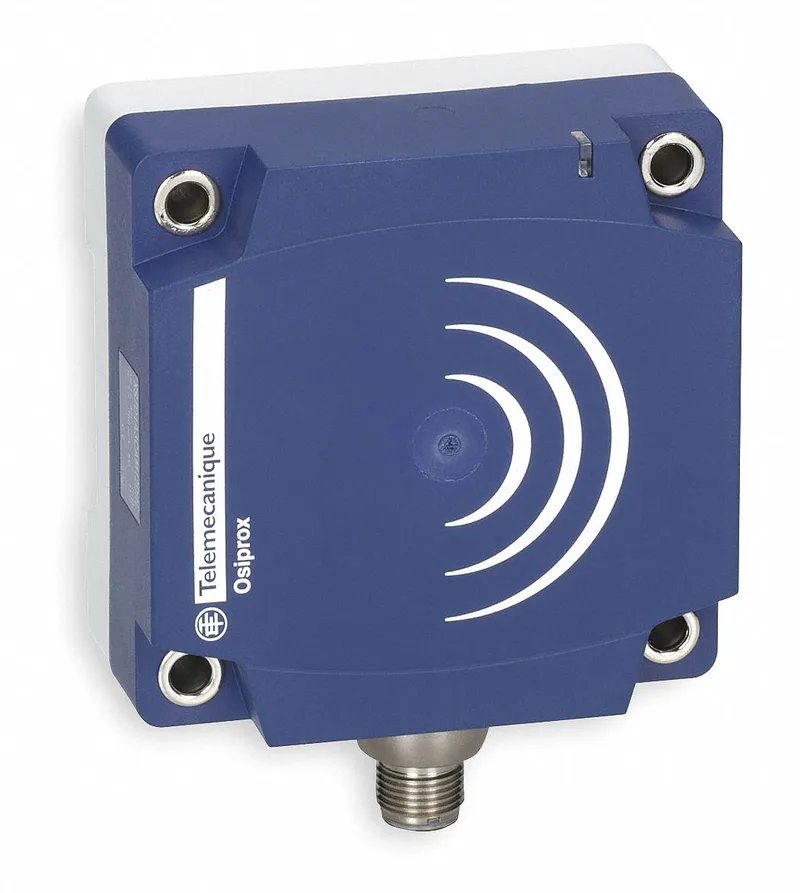

Telemecanique XS7D1A1PAM12 Inductive Prox, 40mm, PNP, IP67

MPNXS7D1A1PAM12

Telemecanique XS7 Series, Inductive Proximity Sensor, XS7D1A1PAM12, 40 mm sensing distance, PNP normally-open, IP67, M12 connector, 12-24V DC.

Schneider Electric XS7D1A1PAM12 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

XS7D1A1PAM12 — Identification
ParameterValue
SeriesXS7
XS7D1A1PAM12 — Sensing
ParameterValue
Sensing distance, max. (alt.)40 mm
Sensing methodInductive
Sensing-face shieldingShielded
XS7D1A1PAM12 — Electrical
ParameterValue
Supply voltageNot Rated ; 12-24V DC
AC supply voltage ratingNot Rated
DC supply voltage rating12-24V DC
Number of wires3
Electrical connectionM12
Electrical installation typeDirect Connector
XS7D1A1PAM12 — Output
ParameterValue
Output circuit contact formNO
Output circuit typePNP
Includes indicator lightsIndicator Lights Included
Output circuitPNP
XS7D1A1PAM12 — Mechanical
ParameterValue
Body styleRectangular
Overall height26 mm
Body materialPBT
XS7D1A1PAM12 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP67
XS7D1A1PAM12 — Approvals
ParameterValue
Standards / certificationsC-Tick; CE; CSA; Ecolab; RoHS; UL Listed

Product details

Rectangular shielded prox, 40 mm range, PNP NO

Telemecanique XS7D1A1PAM12 is a rectangular, shielded inductive proximity sensor from the XS7 series. It delivers a 40 mm sensing distance on a PNP normally-open output. The supply is 12–24V DC via a 4-pin M12 connector. The PBT enclosure is rated IP67 and NEMA 4X, with approvals including UL Listed, CE, CSA, Ecolab, and RoHS. An integrated indicator light is included.

Wiring and mounting notes

3-wire PNP with 4-pin connector. Shielded face permits flush mounting. Indicator lights included.

Frequently asked questions

What are the IP rating and sensing distance?

IP67 rated with a 40 mm shielded sensing distance on an NO output.

What compliance markings does it carry?

UL Listed, CE, CSA, Ecolab, RoHS, and C-Tick.
