Schneider Electric XVLA143
MPNXVLA143
Active

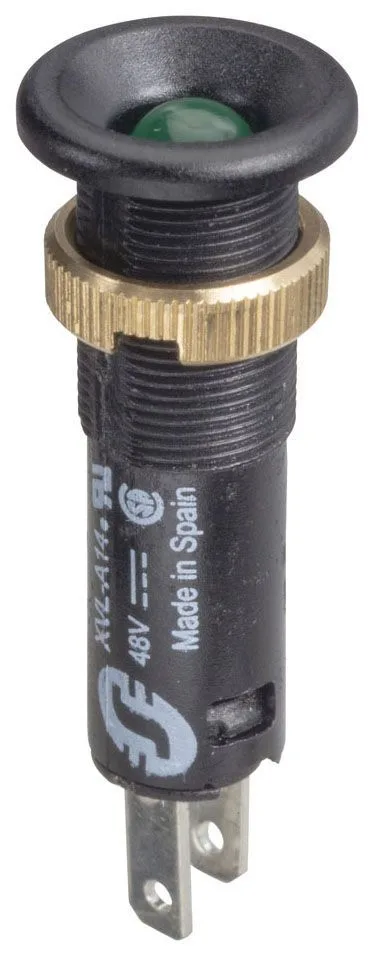

Square D XVLA143 Pilot Light 48V 8mm|Square D XVLA143 Pilot Light 48V 8mm
$28.69Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | Built-in by diode Integral ballast resistor |
| Range of product | Harmony XVL |
| Supply circuit type | DC |
| Product or component type | LED pilot light with black bezel |
| Nominal voltage limit | 0.8...1.1 Un |
| Supply voltage | 48 V |
| Voltage | 50 V IEC 60947-1 |
| Current consumption | 10 mA |
| IP degree of protection | IP40 IEC 60529 IP40 NF C 20-010 |
| Mounting diameter | 0.3 in (8 mm) |
| Connections - terminals | Tag for Faston connectors 2.8 x 0.5 mm Tag for soldering connectors |
| Terminals description ISO n°1 | (X1-X2)PL |
All specifications
| Parameter | Value |
|---|---|
| Depth | 1.3 in (34 mm) |
| Width | 0.5 in (12 mm) |
| Height | 0.5 in (12 mm) |
| Light block colour | Green |
| Category | US10CS222460 |
| Light source | Protruding LED |
| Bulb lifespan | 100000 h |
| Component name | XVL |
| Overvoltage category | Class 3 conforming to IEC 60536 Class 3 conforming to NF C 20-030 |
| Protective treatment | TC |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
XVLA143
