Schneider XVR1G05 Hmi Modules — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Bulb type | Incandescent with BA 15d base |
| Range of product | Harmony XVR Application |
| Product or component type | Rotating mirror beacon |
| Supply voltage | 120 V AC |
| Voltage | 250 V conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| Current consumption | < 210 mA |
| Power dissipation in | 25 W |
| Flashing frequency | 3 Hz |
| IP degree of protection | IP65 conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X conforming to UL 508 (indoor) NEMA 4X conforming to CSA C22 (indoor) |
| Mounting diameter | 165 mm |
| Parameter | Value |
|---|---|
| Cable entry | 1 tapped entry for cable gland (included) for M20 |
| Clamping connection capacity | <= 1 x 1.5 mm² |
| Electrical shock protection class | Class I conforming to EN/IEC 61140 |
| Material | Glass reinforced polyamide 6: base unit Polycarbonate: domed lens unit |
| Product weight | 1.235 kg |
| CAD overall depth | 165 mm |
| CAD overall width | 165 mm |
| CAD overall height | 202 mm |
| Standards | UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 |
| Light source | Bulb included, orange |
| Component name | XVR |
| Operating position | Horizontal |
| Protective treatment | TC |
| Service life in hours | 2000 h |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -20...50 °C |

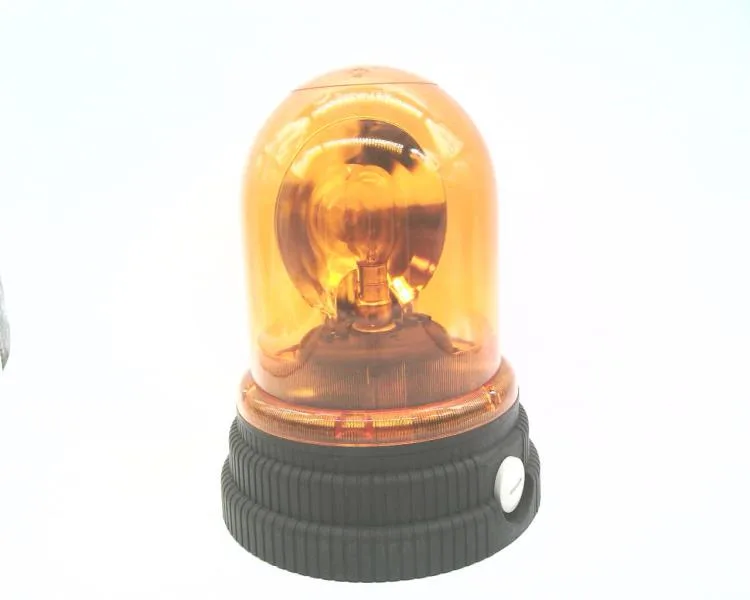

The XVR1G05 is a Schneider Harmony XVR rotating mirror beacon rated 120 V AC at 25 W, fitted with an orange incandescent bulb on a BA 15d base. The enclosure carries NEMA 4X and UL 508 (indoor) ratings, plus IEC 60947-5-1 and CSA C22.2 No 14 compliance, suiting it for outdoor or washdown locations.
For an existing panel that must keep the original code, an RFQ confirms available quantity and lead time for the exact bulb and voltage build.
