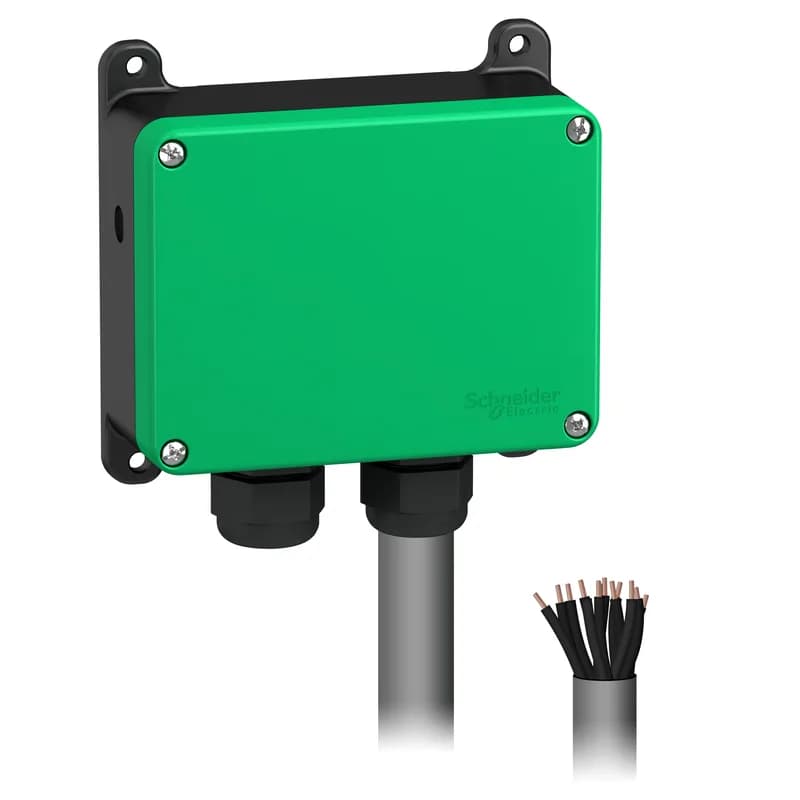

Schneider Electric ZARB10WSP
MPNZARB10WSP
Active
Square D ZARB10WSP Station Cable Gland|Square D ZARB10WSP Station Cable Gland
$342.90 – $550.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type | Motion relay outputs 9 NO Auxiliary relay outputs 1 NO |
| Range of product | Harmony eXLhoist |
| Product or component type | Base station |
| Communication network type | Wireless Zigbee |
| Maximum switching voltage | 240 V AC +/- 20 %) |
| Supply voltage | 48...240 V AC |
| Nominal output current | 0.5 A 48 V AC IEC 60947-5-1 |
| Maximum switching current | 10 A |
| Transmission frequency | 2.4 GHz |
| IP degree of protection | IP66 |
| Cable entry | Cable pre-wired |
| Maximum sensing distance | 328.08 ft (100 m) in free field |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 0...97 % |
| Depth | 2.008 in (51 mm) |
| Width | 4.7 in (120 mm) |
| Height | 4.6 in (117 mm) |
| Material | ABS + PC |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| Category | US10CS222479 |
| Fixing mode | 4 holes |
| Safety outputs | 2 NC relay outputs |
| Radio agreement | FCC IC |
| Number of relays | 10 |
| Device short name | ZARB |
| Provided equipment | Internal antenna |
| Product specific application | Hoisting applications Material handling |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -4...131 °F (-20...55 °C) |
MPN
ZARB10WSP
