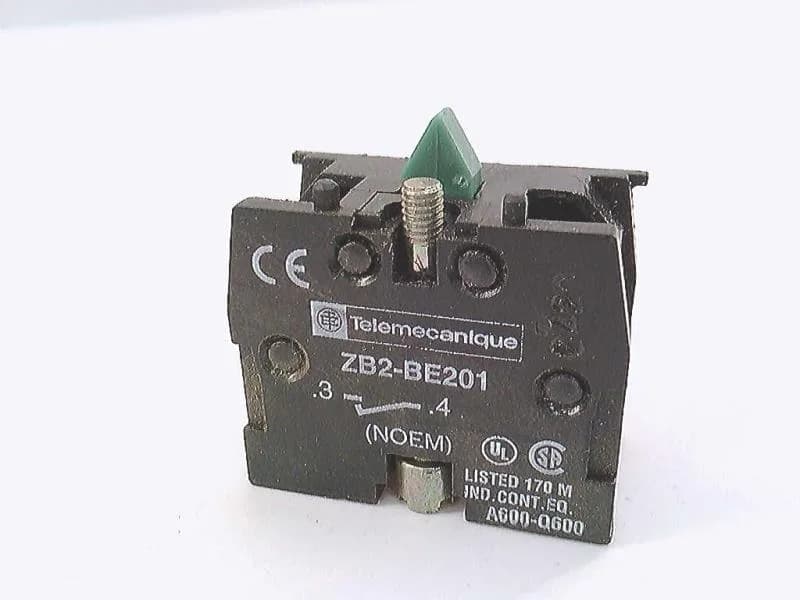

Schneider Electric ZB2BE201
MPNZB2BE201
Active
Contact block, Harmony XAC, single contact, spring return, 2- speeds, front mounting, screw clamp terminal, 1NO
$11.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Harmony XAC |
| Type of operator | Spring return |
| Contact block type | Single |
| Electrical circuit type | Control circuit |
| Product or component type | Contact block |
| Contacts type and composition | 1 NO |
| Voltage | 600 V 3)IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
| Short-circuit protection | 10 A fuse protection cartridge gG (gl) |
| [Ithe] conventional enclosed thermal current | 10 A |
| Rated operational power in | 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1 |
| Mounting of block | Front mounting |
All specifications
| Parameter | Value |
|---|---|
| Connections - terminals | Screw clamps terminals, 1 x 2.5 mm² with or without cable end Screw clamps terminals, 2 x 1.5 mm² with or without cable end |
| Terminals description ISO n°1 | (13-14)NO_CL |
| Maximum resistance across terminals | 25 MOhm |
| Vibration resistance | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class II conforming to IEC 61140 |
| Mechanical durability | 1000000 cycles |
| Standards | IEC 60204-32 UL 508 IEC 60947-5-1 CSA C22.2 No 14 |
| Category | US10CS222466 |
| Component name | ZB2 |
| Operating force | 13...15 N |
| Contact operation | Staggered Slow-break |
| Contact code designation | A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A |
| Contact block application | Up / down operator |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) |
MPN
ZB2BE201
