Schneider Electric ZB4BC28001RA
MPNZB4BC28001RA
Active

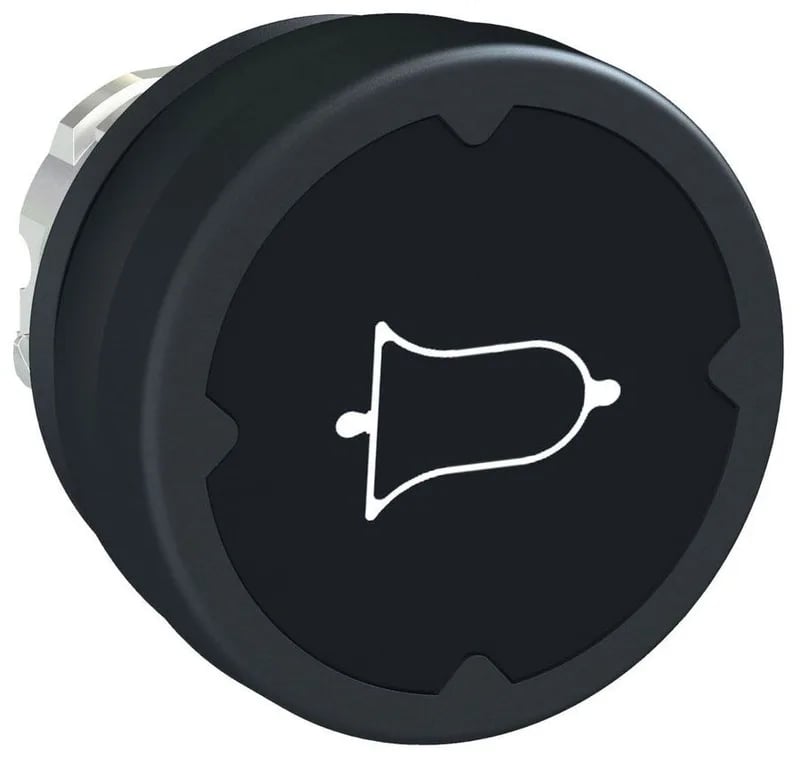

Square D ZB4BC28001RA Pushbutton Head|Square D ZB4BC28001RA Pushbutton Head
$31.99Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Head type | Standard |
| Range of product | Harmony XB4 |
| Type of operator | spring return |
| Product or component type | Head for push-button |
| IK degree of protection | IK06 conforming to IEC 62262 |
| IP degree of protection | IP66 IEC 60529 IP69K IP69 |
| NEMA degree of protection | NEMA 4 UL 508 NEMA 13 NEMA 12 |
| Mounting diameter | 0.9 in (22.5 mm) |
| Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration resistance | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class | Class I conforming to IEC 61140 |
| Bezel material | Chromium plated metal |
All specifications
| Parameter | Value |
|---|---|
| CAD overall depth | 1.5 in (37 mm) |
| CAD overall width | 1.5 in (37 mm) |
| Colour of marking | White |
| CAD overall height | 0.7 in (18.5 mm) |
| Cap (operator or lens colour) | Black |
| Mechanical durability | 3000000 cycles |
| Standards | IEC 60947-5-1 CSA C22.2 IEC 60947-1 UL 508 |
| Marking | Type H001 |
| Category | US10CS222468 |
| Main group | Harsh environment |
| Group of product | Flush marked type H001 |
| Operator profile | Black flush, type H001 white) |
| Device short name | ZB4 |
| Electrical composition code | C1 9 single front mounting C2 9 single and double front mounting C11 3 single front mounting C15 1 single front mounting |
| Shape of signaling unit head | Round |
| Sale per indivisible quantity | 1 |
| Operator additional information | Horizontal mounting |
| Resistance to high pressure washer | 0.01 psi (90 Pa) 180 °F (82.5 °C) |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
ZB4BC28001RA
